PE1V34002

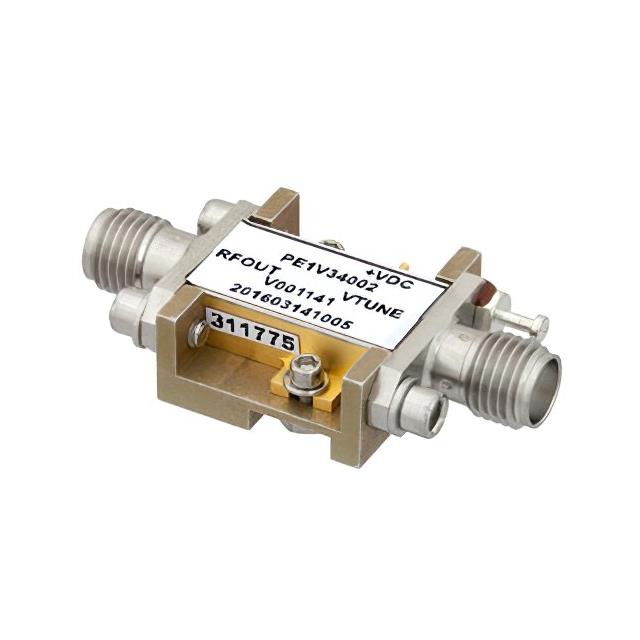

10.25GHz Center Frequency 0 V ~ 13 V Voltage Controlled Oscillator 21 ±3 dBm -20 2nd Harmonic Typ (dBc)
Technical Specifications
Parameters and characteristics for this part
| Specification | PE1V34002 |
|---|---|
| 2nd Harmonic (Typ) (dBc) | -20 dBc |
| Frequency - Center | 10.25 GHz |
| Frequency Range (Max) | 12.5 GHz |
| Frequency Range (Min) | 8 GHz |
| Height | 0.291 in |
| Icc Max | 195 mA |
| Maximum Tuning Voltage (VDC) | 13 V |
| Minimum Tuning Voltage (VDC) | 0 V |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module, SMA Connectors |
| Phase Noise Typ (dBc/Hz) | -59 dBc/Hz |
| Power (dBm) (Nominal) | 21 dBm |
| Power (dBm) Tolerance | 3 dBm |
| Pushing (MHz/V) | 0.2 MHz/V |
| Size / Dimension Length | 0.64 in |
| Size / Dimension Width | 0.7 in |
| Voltage - Supply | 12 VDC |
