Description
General part information
SEN-13905

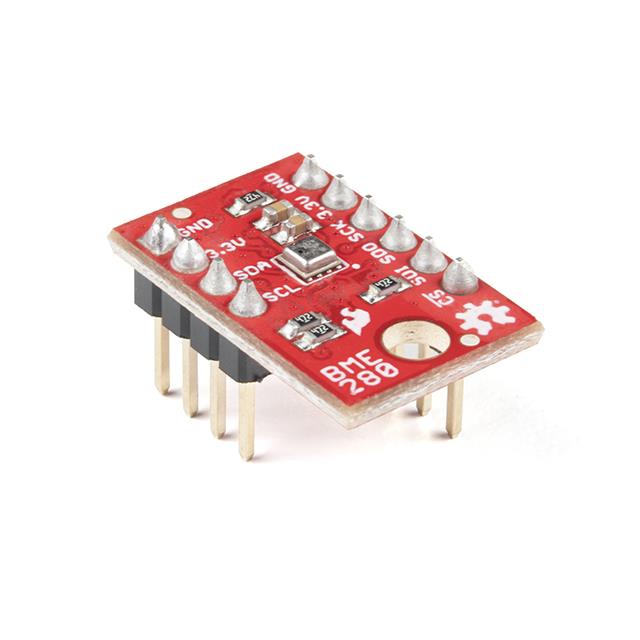

BME280 - Humidity, Pressure, Temperature Sensor Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | SEN-13905 |
|---|---|
| Embedded | No |
| Interface | I2C, Serial, SPI |
| Sensing Range - Humidity (Max) | 100 % RH |
| Sensing Range - Humidity (Min) | 0 % RH |
| Sensing Range - Pressure (Max) | 110 kPa |
| Sensing Range - Pressure (Min) | 300 mbar |
| Sensing Range - Temperature (Max) | 85 °C |
| Sensing Range - Temperature (Min) | -40 °C |
| Sensor Type | Pressure, Temperature, Humidity |
| Supplied Contents | Board(s) |
| Utilized IC / Part | BME280 |
| Voltage - Supply | 3.3 V |
