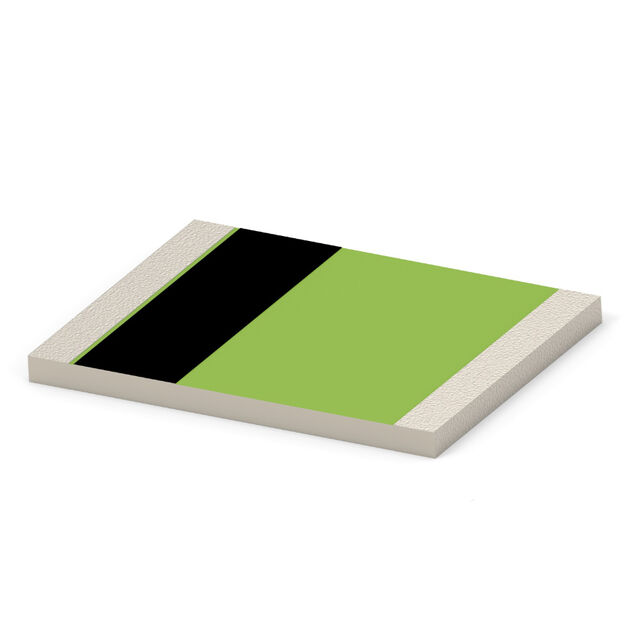

ANTENNAS UWB CERAMIC CHIP ANTENNA 3500 MHZ - 8500 MHZ 8MM X 6MM X 0.5MM
L000801-01
ActiveTE Connectivity AMP Connectors
ANTENNAS UWB CERAMIC CHIP ANTENNA 3500 MHZ - 8500 MHZ 8MM X 6MM X 0.5MM
Description
General part information
L000801-01
Chip Antenna, Wide Band, UWB, Internal/Embedded Mount, Printed Circuit Board Mount, SMD, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | L000801-01 |
|---|---|
| Antenna Type | Chip |
| Applications | UWB |
| Frequency (Band) | 7.25 GHz |
| Frequency (Center) | 4.75 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 6 GHz |
| Frequency Range (Band 1) Minimum | 3.5 GHz |
| Frequency Range (Band 2) Maximum | 8.5 GHz |
| Frequency Range (Band 2) Minimum | 6 GHz |
| Gain | 1.9 dBi, 1.8 dBi |
| Height (Max) | 0.02 in |
| Mounting Type | Surface Mount |
| Number of Bands | 2 |
| Power - Max | 10 VA |
| RF Family/Standard | Cellular |
| Termination | Solder |
| VSWR | 3.5 |
