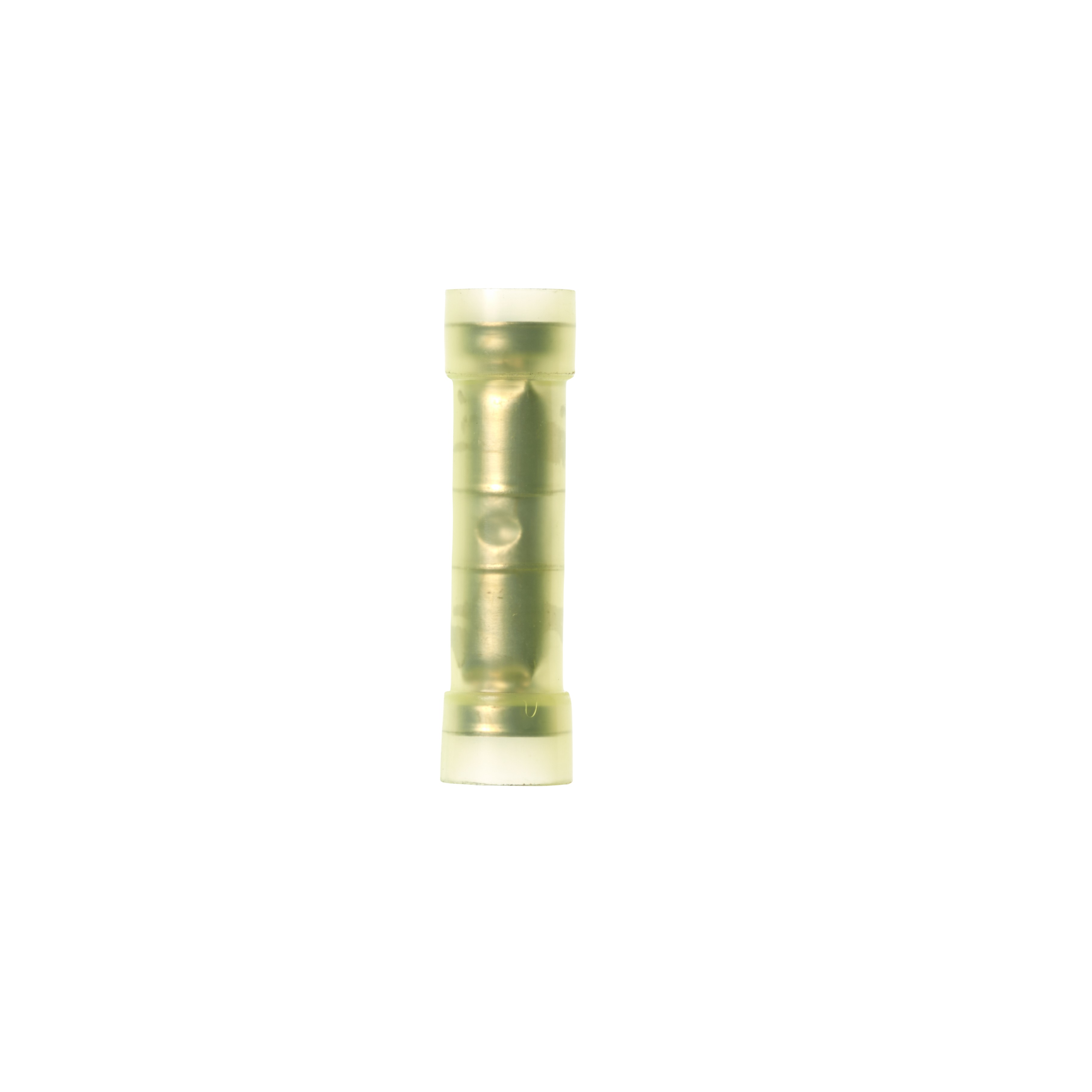

Specification	MNG10BCMK-A

Color	Yellow
Features	Gel Filled
Insulation	Fully Insulated
Number of Wire Entries	2
Terminal Type	Inline, Individual Openings, Butt Splice
Termination	Crimp
Wire Gauge (AWG) (Max)	12 AWG
Wire Gauge (AWG) (Min)	10 AWG

MNG10 Series

Part	Insulation Diameter	Length - Termination	Material - Insulation	Length - Ring Center to Termination	Stud/Tab Size	Termination	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Material	Width - Outer Edges	Length - Overall	Contact Finish	Terminal Type	Mounting Type	Insulation	Color	Tab Width	Tab Thickness	Gender	Number of Wire Entries	Thickness	Stud/Tab Size (Type)	Stud/Tab Size
3M Electronic Specialty MNG10-8FBK	0.25 in	0.55 in	Nylon PA Polyamide	0.29 in	8 Stud	Crimp	12 AWG	10 AWG	Copper ETP	0.32 in	1.03 in	Tin	Standard	Free Hanging (In-Line)	Insulated	Yellow
3M Electronic Specialty MNG10-250DMK	0.25 in					Crimp	12 AWG	10 AWG	Copper ETP		1.05 in	Tin	Standard	Free Hanging (In-Line)	Non-Mating End Insulated	Yellow	0.25 in	0.032 in	Male
3M Electronic Specialty MNG10BCX-BOTTLE						Crimp	12 AWG	10 AWG					Butt Splice Individual Openings Inline		Fully Insulated	Yellow				2
3M Electronic Specialty MNG10-8FFBX-BOTTLE	0.25 in	0.55 in	Nylon PA Polyamide	0.29 in	8 Stud	Crimp	12 AWG	10 AWG	Copper ETP	0.32 in	1.03 in	Tin	Flanged	Free Hanging (In-Line)	Insulated	Yellow
3M Electronic Specialty MNG10-516R/SX-BOTTLE	0.25 in		Nylon PA Polyamide		0.3125 in	Crimp	12 AWG	10 AWG	Copper ETP	0.53 in	1.26 in	Tin	Circular	Free Hanging (In-Line)	Insulated	Yellow					0.04 in	Stud	16 Stud 5 Stud
3M Electronic Specialty MNG10-10FLK	0.25 in	0.55 in	Nylon PA Polyamide	0.28 in	10 Stud	Crimp	12 AWG	10 AWG	Copper ETP	0.32 in	1.03 in	Tin	Snap Spring	Free Hanging (In-Line)	Insulated	Yellow
3M Electronic Specialty MNG10BCMK						Crimp	12 AWG	10 AWG					Butt Splice Individual Openings Inline		Fully Insulated	Yellow				2
3M Electronic Specialty MNG10-14R/SK	0.25 in		Nylon PA Polyamide		0.25 Stud	Crimp	12 AWG	10 AWG	Copper ETP	0.53 in	1.26 in	Tin	Circular	Free Hanging (In-Line)	Insulated	Yellow					0.04 in
3M Electronic Specialty MNG10-10FFBK	0.25 in	0.55 in	Nylon PA Polyamide	0.29 in	10 Stud	Crimp	12 AWG	10 AWG	Copper ETP	0.32 in	1.03 in	Tin	Flanged	Free Hanging (In-Line)	Insulated	Yellow
3M Electronic Specialty MNG10-8RX-BOTTLE	0.25 in		Nylon PA Polyamide		8 Stud	Crimp	12 AWG	10 AWG	Copper ETP	0.38 in	1.03 in	Tin	Circular	Free Hanging (In-Line)	Insulated	Yellow					0.04 in
