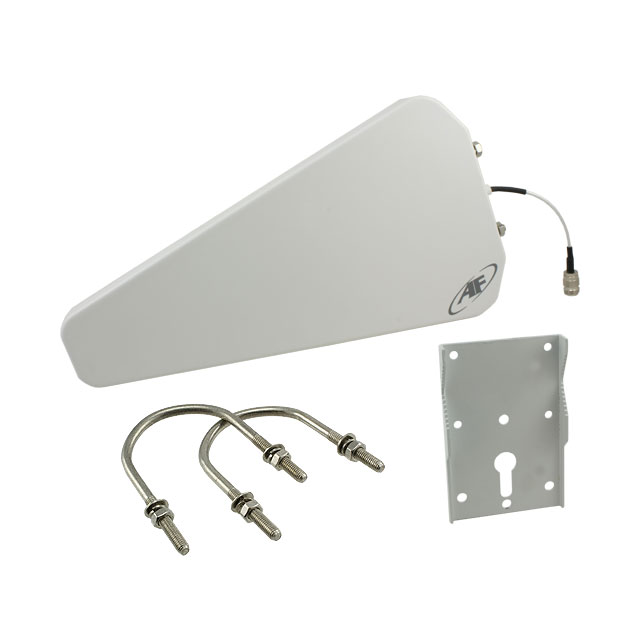

Specification	ANT-DB1-LP-RM-01-N

Antenna Type	Log Periodic
Features	165mm, Cable
Frequency (Center/Band)	892MHz, 1.94GHz, 2.45GHz
Frequency (Center/Band) - 1	892 MHz
Frequency (Center/Band) - 2	1.94 GHz
Frequency (Center/Band) - 3	2.45 GHz
Frequency Group	Wide Band
Frequency Range (Band 1) Maximum	960 MHz
Frequency Range (Band 1) Minimum	824 MHz
Frequency Range (Band 2) Maximum	2.17 GHz
Frequency Range (Band 2) Minimum	1.71 GHz
Frequency Range (Band 3) Maximum	2.48 GHz
Frequency Range (Band 3) Minimum	2.4 GHz
Gain	9 dBi, 8.5 dBi
Height (Max)	15.551 in
Mounting Type	Bracket Mount
Number of Bands	3
Power - Max	100 VA
Termination	N Type Female
VSWR	1.5

ANT-DB1 Series

Part	VSWR	RF Family/Standard	Gain	Frequency Range (Band 2) Maximum	Frequency Range (Band 2) Minimum	Frequency Range (Band 1) Minimum	Frequency Range (Band 1) Maximum	Height (Max)	Antenna Type	Frequency (Center/Band)	Frequency (Center/Band) - 1	Frequency (Center/Band) - 5	Frequency (Center/Band) - 2	Frequency (Center/Band) - 3	Frequency (Center/Band) - 4	Number of Bands	Frequency Group Minimum (SHF)	Frequency Group	Frequency Group Maximum (UHF)	Frequency Group Minimum (UHF)	Termination Type	Applications	Mounting Type	Features	VSWR	Termination	Frequency Range (Band 3) Maximum	Frequency Range (Band 3) Minimum	Power - Max	Frequency (Center)	Frequency (Band)	VSWR Maximum	VSWR Minimum	Return Loss	Return Loss
TE Connectivity AMP Connectors ANT-DB1-RAF-SMA	1.9	802.15.4 Bluetooth WiFi	2.5 dBi 4.6 dBi	5.825 GHz	5.15 GHz	2.4 GHz	2.483 GHz	4.13 in	Tilt Whip	2.4GHz 2.5GHz 5.7GHz 5.8GHz 5GHz	2.4 GHz	5.8 GHz	2.5 GHz	5 GHz	5.7 GHz	2	4 GHz	SHF UHF	3 GHz	2 GHz	SMA Male	Bluetooth Thread Wi-Fi Zigbee™	Connector Mount
TE Connectivity AMP Connectors ANT-DB1-VDP-TNC			-1.8 dBi -1.7 dBi -1.3 dBi	1.99 GHz	1.71 GHz	824 MHz	960 MHz	0.177 "	Flat Bar	1.85GHz 2.45GHz 892MHz	892 MHz		1.85 GHz	2.45 GHz		3		Wide Band					Adhesive	3m Cable	1.5 1.9	TNC	2.48 GHz	2.4 GHz
TE Connectivity AMP Connectors ANT-DB1-HDP-SMA			-3.3 dBi 0 dBi 0.2 dBi	1.99 GHz	1.71 GHz	824 MHz	960 MHz	0.476 in	Flat Bar	1.85GHz 2.45GHz 892MHz	892 MHz		1.85 GHz	2.45 GHz		3		Wide Band			SMA Male		Adhesive	3m Cable	1.5 1.9		2.483 GHz	2.401 GHz
TE Connectivity AMP Connectors ANT-DB1-LCD-SMA	1.9	WiFi	2.8 dBi 2.92 dBi 4.5 dBi	5.72 GHz	5.12 GHz	2.4 GHz	2.5 GHz	3.272 in	Tilt Whip	2.4GHz 2.5GHz 5.7GHz 5.8GHz 5GHz	2.4 GHz	5.8 GHz	2.5 GHz	5 GHz	5.7 GHz	3	4 GHz	SHF UHF	3 GHz	2 GHz	SMA Male	ISM U-NII WiFi WLAN	Connector Mount				5.88 GHz	5.72 GHz	10 VA
TE Connectivity AMP Connectors ANT-DB1-HDP-RPS			-3.3 dBi 0 dBi 0.2 dBi	1.99 GHz	1.71 GHz	824 MHz	960 MHz	0.476 in	Flat Bar	1.85GHz 2.45GHz 892MHz	892 MHz		1.85 GHz	2.45 GHz		3		Wide Band			RP-SMA Male		Adhesive	3m Cable	1.5 1.9		2.483 GHz	2.401 GHz
TE Connectivity AMP Connectors ANT-DB1-RMS-TNC			-0.6 dBi 5.3 dBi	1.99 GHz	1.71 GHz	824 MHz	960 MHz	2.583 in	Straight Whip							2		UHF	1 GHz 2 GHz	1 GHz 300 MHz			Panel Mount	4.3m Cable	1.5 2	TNC				892 MHz	1.9 GHz	2	1.5
TE Connectivity AMP Connectors ANT-DB1-WRT-SMA		WiFi	3.2 dBi 6.8 dBi 7 dBi	5.85 GHz	5.15 GHz	2.4 GHz	2.485 GHz	0.394 in	Dome	2.4GHz 5GHz 6GHz						3	4 GHz	SHF UHF	3 GHz	2 GHz	SMA Male	802.11 802.15.4 Bluetooth WiFi 4 WiFi 5 WiFi 6 ZigBee	Panel Mount	216mm Cable	1.9 3.7 4		7.125 GHz	5.925 GHz	5 VA					-10.2dBi -4.4dB -4.8dBi	-10.2 dBi -4.8 dBi -4.4 dB
TE Connectivity AMP Connectors ANT-DB1-RMS-RPS			-0.6 dBi 5.3 dBi	1.99 GHz	1.71 GHz	824 MHz	960 MHz	2.583 in	Straight Whip							2		UHF	1 GHz 2 GHz	1 GHz 300 MHz	RP-SMA Male		Panel Mount	4.3m Cable	1.5 2					892 MHz	1.9 GHz	2	1.5
TE Connectivity AMP Connectors ANT-DB1-NSP250-T		Bluetooth WiFi	2.7 dBi 3.7 dBi	5.88 GHz	5.15 GHz	2.4 GHz	2.5 GHz	0.043 in	Chip							2	4 GHz	SHF UHF	3 GHz	2 GHz		802.11 Bluetooth U-NII Wi-Fi WLAN Zigbee™	Surface Mount		2 2.4	Solder			5 VA	2.4 GHz	5.8 GHz	2.4	2
TE Connectivity AMP Connectors ANT-DB1-VDP-RPS			-1.8 dBi -1.7 dBi -1.3 dBi	1.99 GHz	1.71 GHz	824 MHz	960 MHz	0.177 "	Flat Bar	1.85GHz 2.45GHz 892MHz	892 MHz		1.85 GHz	2.45 GHz		3		Wide Band			RP-SMA Male		Adhesive	3m Cable	1.5 1.9		2.48 GHz	2.4 GHz
