03304.63.04
ActivePrysmian Group
CRD 14AWG NEMA5-15P - 5-15R 100'
03304.63.04
ActivePrysmian Group
CRD 14AWG NEMA5-15P - 5-15R 100'
Description
General part information
03304.63.04

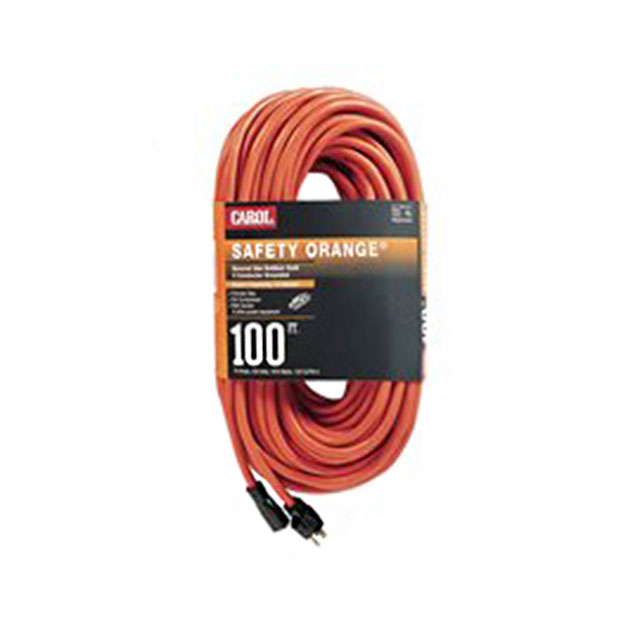

100.00' (30.48m) Power Cord Orange NEMA 5-15P To NEMA 5-15R SJTW
Technical Specifications
Parameters and characteristics for this part
| Specification | 03304.63.04 |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | NEMA 5-15R |
| Approval Agency Marking | UL |
| Approved Countries | United States |
| Color | Orange |
| Cord Type | SJTW |
| Current Rating | 13 A |
| Features | Outdoor Use, OSHA Approved |
| Length | 100 ft |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 125 V |
| Wire Gauge | 14 AWG |
