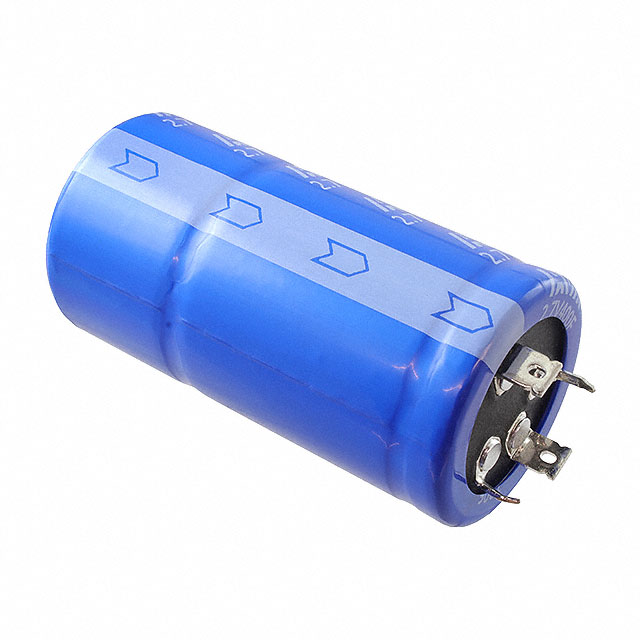

SCCY68B407SSBLE
ActiveKYOCERA AVX
CAPACITOR 400F -10% +30% 2.7V TH
SCCY68B407SSBLE
ActiveKYOCERA AVX
CAPACITOR 400F -10% +30% 2.7V TH
Description
General part information
SCCY68B407SSBLE
400 F (EDLC) Supercapacitor 2.7 V Radial, Can - 4 Lead 2.2mOhm @ 1kHz 1000 Hrs @ 60°C
Technical Specifications
Parameters and characteristics for this part
| Specification | SCCY68B407SSBLE |
|---|---|
| Capacitance | 400 F |
| ESR (Equivalent Series Resistance) | 2.2 mOhm |
| Height - Seated (Max) | 2.756 in |
| Lead Spacing | 0.886 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Lead |
| Package Name | Can, Radial |
| Size / Dimension Diameter | 1.378 in |
| Termination | PC Pins |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 30 % |
| Voltage - Rated | 2.7 VDC |
