26-56-93-906

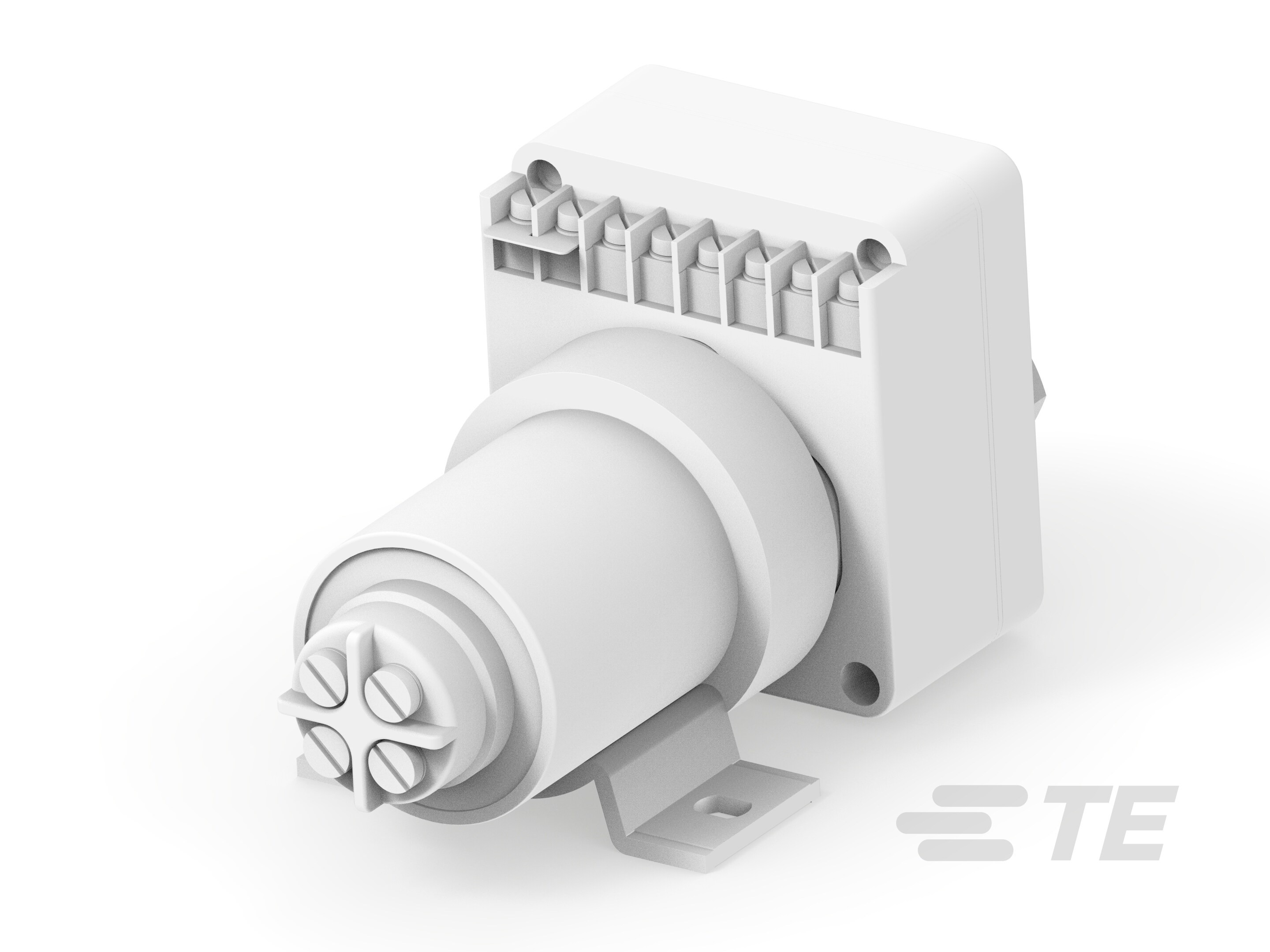

Intelligent Power Relay, DC, Monostable, 1 Form X SPST-NO-DM, 300 A Contact Rating, 18 – 32 VDC Coil Voltage, 28 VDC Contact Voltage
Technical Specifications
Parameters and characteristics for this part
| Specification | 26-56-93-906 |
|---|---|
| Coil Type | Non Latching |
| Coil Voltage | 28 VDC |
| Contact Form | SPDT (1 Form C), SPST-NO (1 Form A), SPDT, Form, 1, A, C, SPST-NO |
| Contact Rating (Current) | 300 A |
| Form A Count | 1 |
| Form C Count | 1 |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 15 VDC |
| Operate Time | 25 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -35 °C |
| Pin Count | 0 |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Termination Style | Screw Terminal |
