60320-1
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 14-18AWG #8 CRIMP
60320-1
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 14-18AWG #8 CRIMP
Description
General part information
60320-1

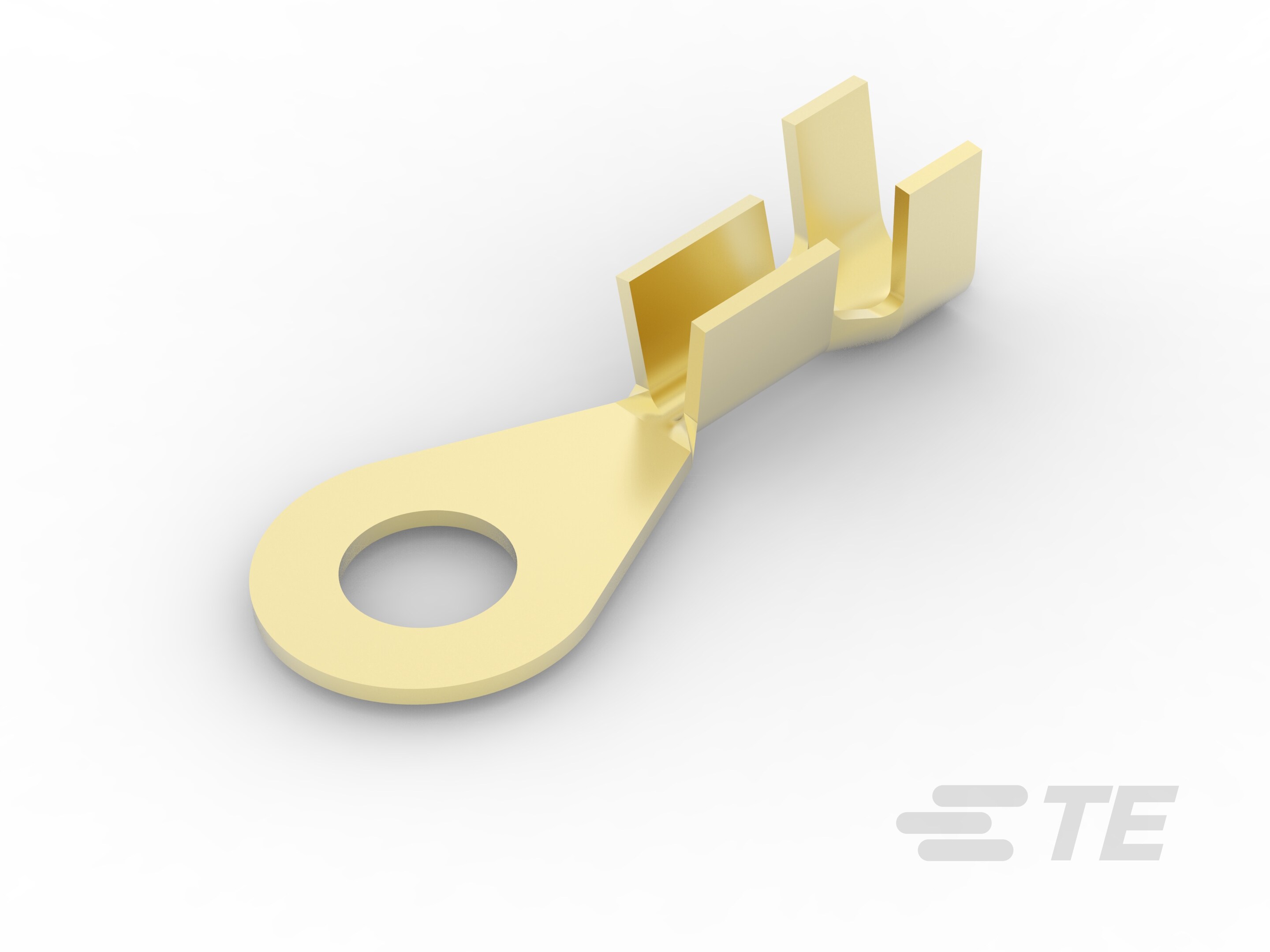

Closed Ring Tongue Terminal, 18 – 14 AWG, #8 / M4 Stud, 4.17 mm [.164 in] Stud Diameter, Open Barrel, Straight, Unplated Plating, AMPLIVAR
Technical Specifications
Parameters and characteristics for this part
| Specification | 60320-1 |
|---|---|
| Contact Material | Brass |
| Features | Serrated Termination |
| Insulation | Non-Insulated |
| Length - Overall | 0.833 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.02 in |
| Width - Outer Edges | 0.342 in |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
