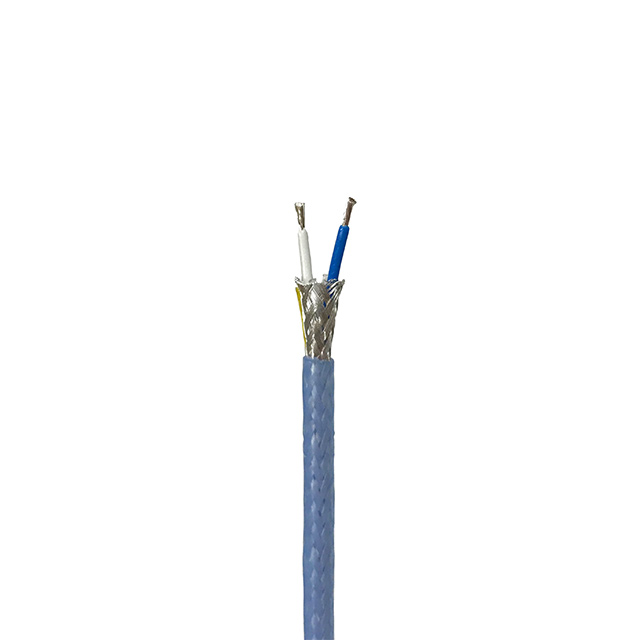

M17/176-00002-50
ActiveRemington Industries
M17/176-00002 TWINAX CABLE (SHIE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M17/176-00002-50
ActiveRemington Industries
M17/176-00002 TWINAX CABLE (SHIE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M17/176-00002-50 | M17/176 Series |
|---|---|---|
| Cable Type | Twinaxial | Twinaxial |
| Conductor Material | Copper, Silver Coated | Copper, Silver Coated |
| Dielectric Material | Perfluoroalkoxy (PFA) | Perfluoroalkoxy (PFA) |
| Impedance | 78 Ohms | 78 Ohms |
| Jacket (Insulation) Material | Perfluoroalkoxy (PFA) | Perfluoroalkoxy (PFA) |
| Jacket Color | Blue | Blue |
| Length | 15.24 m | 7.62 - 76.2 m |
| Length | 50 ft | 25 - 3000 " |
| Length | - | 1.22 - 610 m |
| Length | - | 1 - 100 ft |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shield Coverage | 100 % | 100 % |
| Shield Material | Copper Alloy, Silver Coated | Copper Alloy, Silver Coated |
| Shield Type | Braid | Braid |
| Wire Gauge | 24 AWG | 24 AWG |
M17/176 Series
M17/176-00002 TWINAX CABLE (SHIE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Conductor Material | Length | Length | Shield Coverage | Impedance | Shield Material | Jacket Color | Shield Type | Dielectric Material | Wire Gauge | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Remington Industries M17/176-00002-250 | -55 °C | 250 °C | Perfluoroalkoxy (PFA) | Copper, Silver Coated | 76.2 m | 3000 " | 100 % | 78 Ohms | Copper Alloy, Silver Coated | Blue | Braid | Perfluoroalkoxy (PFA) | 24 AWG | Twinaxial | ||
Remington Industries M17/176-00002-10 | -55 °C | 250 °C | Perfluoroalkoxy (PFA) | Copper, Silver Coated | 100 % | 78 Ohms | Copper Alloy, Silver Coated | Blue | Braid | Perfluoroalkoxy (PFA) | 24 AWG | Twinaxial | 3.05 m | 10 ft | ||
Remington Industries M17/176-00002-1 | -55 °C | 250 °C | Perfluoroalkoxy (PFA) | Copper, Silver Coated | 100 % | 78 Ohms | Copper Alloy, Silver Coated | Blue | Braid | Perfluoroalkoxy (PFA) | 24 AWG | Twinaxial | 300 mm | 1 ft | ||
Remington Industries M17/176-00002-50 | -55 °C | 250 °C | Perfluoroalkoxy (PFA) | Copper, Silver Coated | 15.24 m | 50 ft | 100 % | 78 Ohms | Copper Alloy, Silver Coated | Blue | Braid | Perfluoroalkoxy (PFA) | 24 AWG | Twinaxial | ||
Remington Industries M17/176-00002-2 | -55 °C | 250 °C | Perfluoroalkoxy (PFA) | Copper, Silver Coated | 100 % | 78 Ohms | Copper Alloy, Silver Coated | Blue | Braid | Perfluoroalkoxy (PFA) | 24 AWG | Twinaxial | 610 mm | 2 ' | ||
Remington Industries M17/176-00002-100 | -55 °C | 250 °C | Perfluoroalkoxy (PFA) | Copper, Silver Coated | 100 % | 78 Ohms | Copper Alloy, Silver Coated | Blue | Braid | Perfluoroalkoxy (PFA) | 24 AWG | Twinaxial | 30.48 m | 100 ft | ||
Remington Industries M17/176-00002-4 | -55 °C | 250 °C | Perfluoroalkoxy (PFA) | Copper, Silver Coated | 100 % | 78 Ohms | Copper Alloy, Silver Coated | Blue | Braid | Perfluoroalkoxy (PFA) | 24 AWG | Twinaxial | 1.22 m | 4 ft | ||
Remington Industries M17/176-00002-25 | -55 °C | 250 °C | Perfluoroalkoxy (PFA) | Copper, Silver Coated | 7.62 m | 25 ft | 100 % | 78 Ohms | Copper Alloy, Silver Coated | Blue | Braid | Perfluoroalkoxy (PFA) | 24 AWG | Twinaxial |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 195.18 | |
Description
General part information
M17/176 Series
Twinaxial Cable 24 AWG 50.0' (15.24m) 78 Ohms
