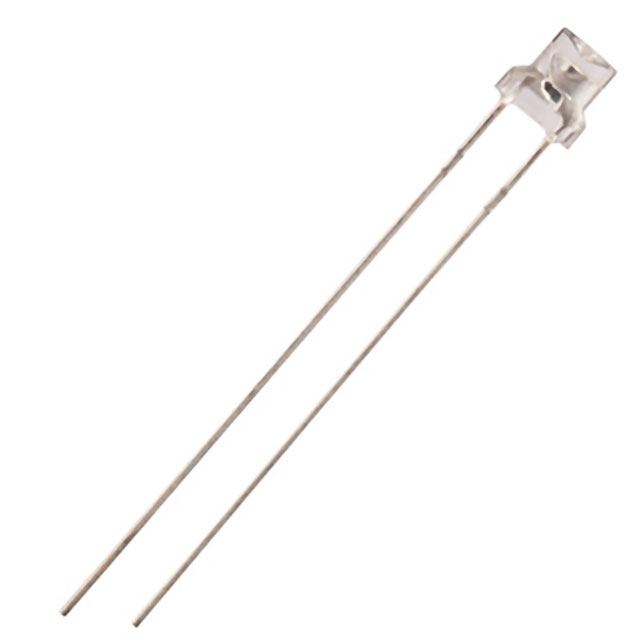

THB3809X
ObsoleteStanley Electric Co
BLUE UNI-COLOR CHIP LEDS
THB3809X
ObsoleteStanley Electric Co
BLUE UNI-COLOR CHIP LEDS
Description
General part information
THB3809X
Blue 470nm LED Indication - Discrete 3V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | THB3809X |
|---|---|
| Color | Blue |
| Configuration | Standard |
| Current - Test | 5 mA |
| Height (Max) | 4.6 mm |
| Lens Color | Colorless |
| Lens Size | 3 mm |
| Lens Size (Code) | T-1 |
| Lens Style | Round, Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 75 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Viewing Angle (Horizontal) | 90 ° |
| Viewing Angle (Vertical) | 90 ° |
| Voltage - Forward (Vf) (Typ) | 3 V |
| Wavelength - Dominant | 470 nm |
| Wavelength - Peak | 465 nm |
