C1220X5R1A105K
ObsoleteTDK Corporation
CAP CER 1UF 10V X5R 0508
C1220X5R1A105K
ObsoleteTDK Corporation
CAP CER 1UF 10V X5R 0508
Description
General part information
C1220X5R1A105K

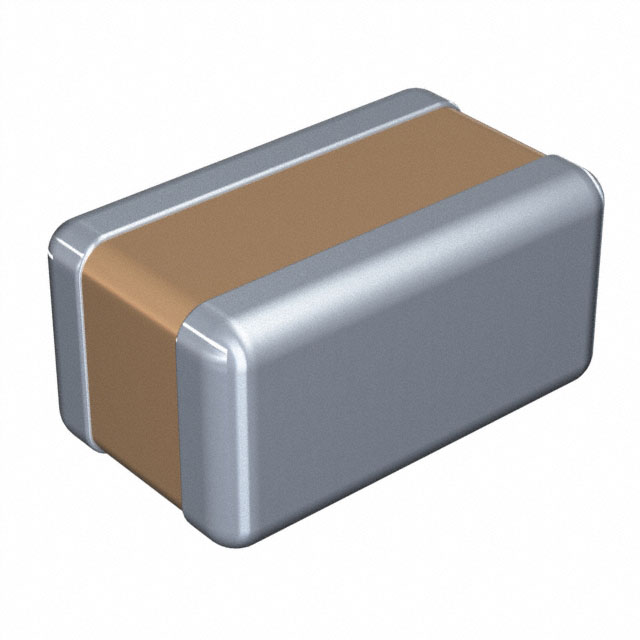

1 µF ±10% 10V Ceramic Capacitor X5R 0508 (1220 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | C1220X5R1A105K |
|---|---|
| Applications | Bypass, Decoupling |
| Capacitance | 1 µF |
| Features | Low ESL (Reverse Geometry) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0508 (1220 Metric) |
| Size / Dimension Length | 0.049 in |
| Size / Dimension Width | 0.079 in |
| Temperature Coefficient | X5R |
| Thickness (Max) | 0.037 in |
| Tolerance | 10 % |
| Voltage - Rated | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
