630-13W3640-4TD
ActiveEDAC Inc.

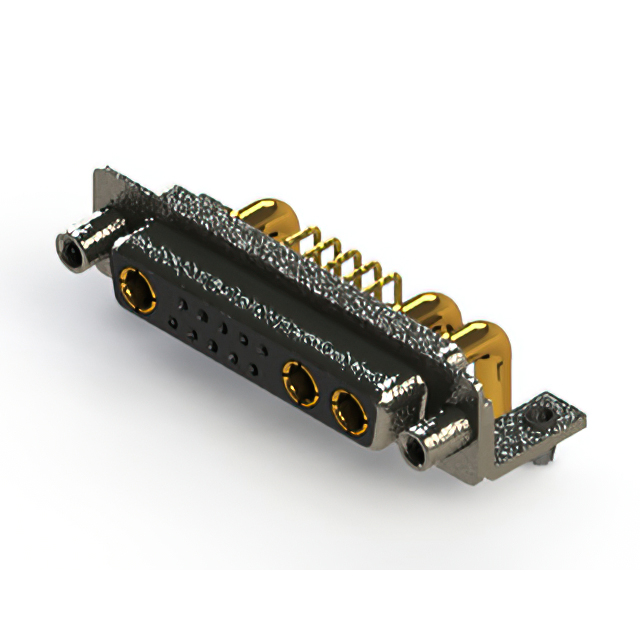

COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DB-13W3, RECEPTACLE, 13 CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
630-13W3640-4TD
ActiveEDAC Inc.
COMBINATION LAYOUT D SUB CONNECTOR, 630C SERIES, DB-13W3, RECEPTACLE, 13 CONTACTS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 630-13W3640-4TD |
|---|---|
| Backset Spacing | 9.4 mm |
| Backset Spacing | 0.37 in |
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 40 A, 5 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Board Lock, Mounting Brackets |
| Flange Feature | M3 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions [custom] | 10 |
| Number of Positions [custom] | 3 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 13W3, 13C3, B, DB |
| Shell Size, Connector Layout | 3 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
630-13W Series
...
| Part | Number of Rows | Material Flammability Rating | Backset Spacing | Backset Spacing | Termination | Flange Feature | Contact Type | Dielectric Material | Contact Material | Features | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Finish | Shell Size, Connector Layout | Shell Size, Connector Layout | Connector Type | Number of Positions [custom] | Number of Positions [custom] | Color | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions [custom] | Number of Positions | Shell Material, Finish | Contact Finish Thickness | Current Rating (Amps) | Number of Positions [custom] | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | UL94 V-0 | 9.4 mm | 0.37 in | Solder | Housing/Shell (4-40) | Coax Signal | Polyester Thermoplastic | Copper Alloy | Mounting Brackets | Combo D-Sub | -55 °C | 125 °C | 125 VDC | Gold | 13C3 13W3 B DB | 3 | Receptacle Female Sockets | 10 | 3 | Black | Through Hole Right Angle | 0.76 Ám | 30 Áin | |||||||
EDAC Inc. | 2 | UL94 V-0 | 9.4 mm | 0.37 in | Solder | Housing/Shell (M3) | Coax Signal | Polyester Thermoplastic | Copper Alloy | Board Lock Mounting Brackets | Combo D-Sub | -55 °C | 125 °C | 125 VDC | Gold | 13C3 13W3 B DB | 3 | Receptacle Female Sockets | 10 | 3 | Black | Through Hole Right Angle | 0.76 Ám | 30 Áin | |||||||
EDAC Inc. | 2 | UL94 V-0 | 9.4 mm | 0.37 in | Solder | M3 | Signal and Power | Polyester Thermoplastic | Copper Alloy | Board Lock Mounting Brackets | Combo D-Sub | -55 °C | 125 °C | 125 VDC | Gold | 13W6 4 (DC C) | Receptacle Female Sockets | Black | Through Hole Right Angle | 6 | 13 | Nickel Plated Steel | Flash | 5 A 40 A | |||||||
EDAC Inc. | 2 | UL94 V-0 | 9.4 mm | 0.37 in | Solder | 4-40 | Signal and Power | Polyester Thermoplastic | Copper Alloy | Combo D-Sub | -55 °C | 125 °C | 125 VDC | Gold | 13C3 13W3 B DB | 3 | Receptacle Female Sockets | Black | Through Hole Right Angle | 3 | Nickel Plated Steel | Flash | 5 A 40 A | 10 | |||||||
EDAC Inc. | 2 | UL94 V-0 | 9.4 mm | 0.37 in | Solder | M3 | Signal and Power | Polyester Thermoplastic | Copper Alloy | Board Lock Mounting Brackets | Combo D-Sub | -55 °C | 125 °C | 125 VDC | Gold | 13W6 4 (DC C) | Receptacle Female Sockets | Black | Through Hole Right Angle | 6 | 13 | Nickel Plated Steel | Flash | 5 A 20 A | |||||||
EDAC Inc. | 2 | UL94 V-0 | 9.4 mm | 0.37 in | Solder | Housing/Shell (M3) | Signal and Power | Polyester Thermoplastic | Copper Alloy | Board Lock Mounting Brackets | Combo D-Sub | -55 °C | 125 °C | 125 VDC | Gold | 13W6 4 (DC C) | Receptacle Female Sockets | Black | Through Hole Right Angle | 6 | 13 | Flash | 5 A 20 A | ||||||||
EDAC Inc. | 2 | UL94 V-0 | 9.4 mm | 0.37 in | Solder | Housing/Shell (M3) | Signal and Power | Polyester Thermoplastic | Copper Alloy | Mounting Brackets | Combo D-Sub | -55 °C | 125 °C | 125 VDC | Gold | 13W6 4 (DC C) | Receptacle Female Sockets | Black | Through Hole Right Angle | 0.76 Ám | 30 Áin | 6 | 13 | Nickel Plated Steel | 5 A 40 A | ||||||
EDAC Inc. | 2 | UL94 V-0 | 9.4 mm | 0.37 in | Solder | Housing/Shell (M3) | Signal and Power | Polyester Thermoplastic | Copper Alloy | Board Lock Mounting Brackets | Combo D-Sub | -55 °C | 125 °C | 125 VDC | Gold | 13C3 13W3 B DB | 3 | Receptacle Female Sockets | Black | Through Hole Right Angle | 3 | Nickel Plated Steel | Flash | 10 | 10A 5A | ||||||
EDAC Inc. | 2 | UL94 V-0 | 9.4 mm | 0.37 in | Solder | Housing/Shell (4-40) | Signal and Power | Polyester Thermoplastic | Copper Alloy | Mounting Brackets | Combo D-Sub | -55 °C | 125 °C | 125 VDC | Gold | 13W6 4 (DC C) | Receptacle Female Sockets | Black | Through Hole Right Angle | 6 | 13 | Nickel Plated Steel | Flash | 5 A 20 A | |||||||
EDAC Inc. | 2 | UL94 V-0 | 9.4 mm | 0.37 in | Solder | M3 | Signal and Power | Polyester Thermoplastic | Copper Alloy | Board Lock Mounting Brackets | Combo D-Sub | -55 °C | 125 °C | 125 VDC | Gold | 13C3 13W3 B DB | 3 | Receptacle Female Sockets | Black | Through Hole Right Angle | 0.76 Ám | 30 Áin | 3 | 5 A 40 A | 10 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
630-13W Series
13 (10 + 3 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
Documents
Technical documentation and resources
