DIX36B
ActiveNMB TECHNOLOGIES
3 PHASE 4 HOLES INNER ROTOR TYPE
DIX36B
ActiveNMB TECHNOLOGIES
3 PHASE 4 HOLES INNER ROTOR TYPE
Description
General part information

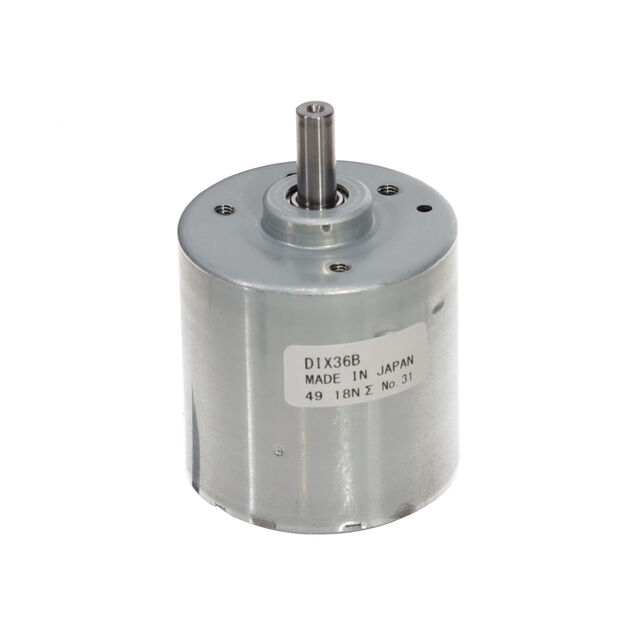

DIX36B
Brushless (BLDC) DC Motor Standard 5200 RPM 12W 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | DIX36B |
|---|---|
| Diameter - Shaft | 0.197 in, 0.315 in |
| Function | Standard |
| Length - Shaft and Bearing | 0.591 in |
| Motor Type | Brushless (BLDC) |
| Mounting Hole Spacing | 1.043 in |
| Power - Rated | 12 W |
| RPM | 5200 RPM |
| Size / Dimension Diameter | 1.417 in |
| Size / Dimension Shape | Round |
| Termination Style | Connector |
| Torque - Rated (mNm) | 1.5 mNm |
| Torque - Rated (oz-in) | 0.212 oz-in |
| Type | DC Motor |
| Voltage - Rated | 24 VAC |
