2-2188225-1
ActiveTE Connectivity AMP Connectors
020/060 28P PLUG ASSY(CODE B1)
2-2188225-1
ActiveTE Connectivity AMP Connectors
020/060 28P PLUG ASSY(CODE B1)
Description
General part information
2-2188225-1

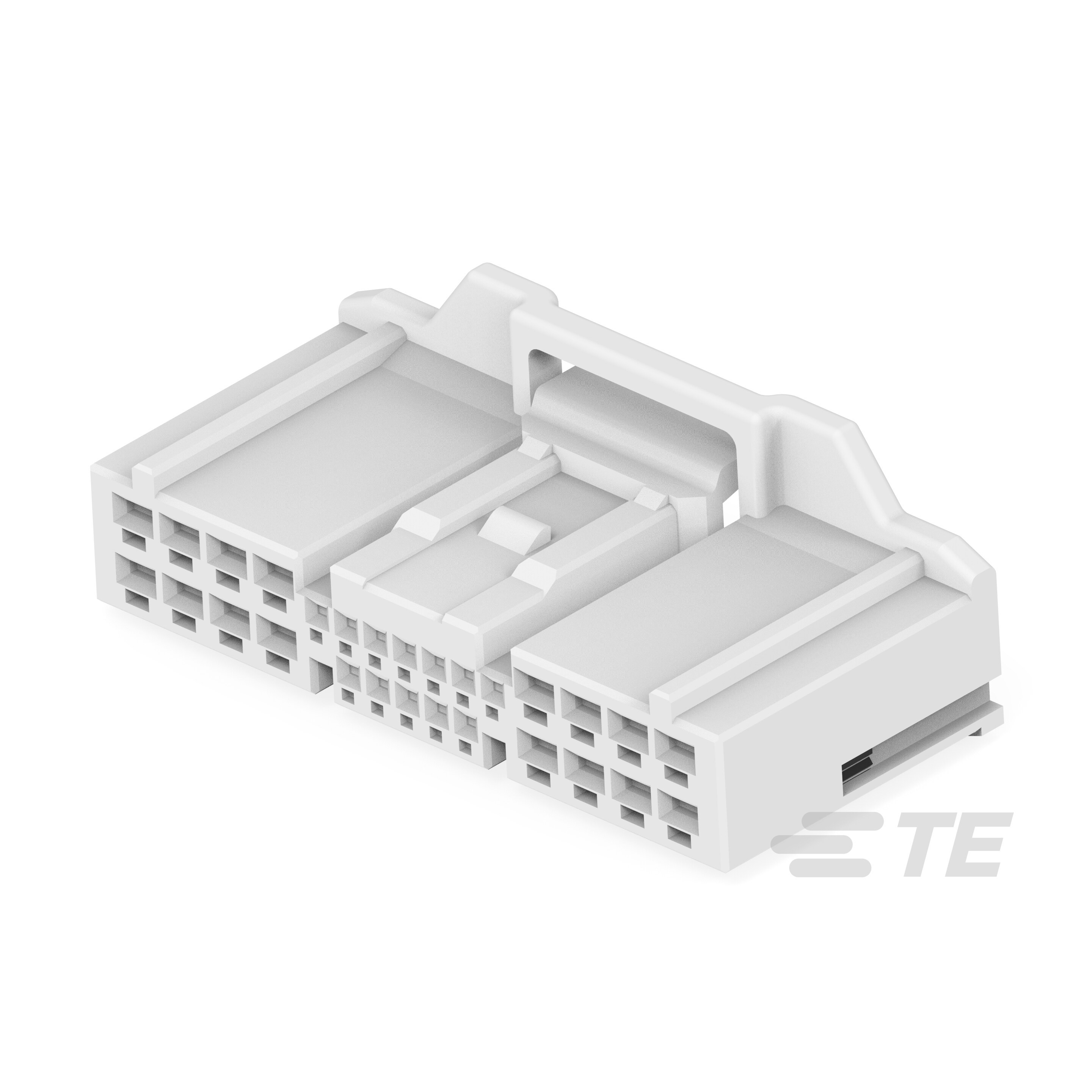

28 Position Housing, Housing for Female Terminals, Wire-to-Board, 2 mm / 3.2 mm [.07 in / .12 in] Centerline, Natural, Wire & Cable, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2188225-1 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 28 |
| Number of Rows | 2 |
