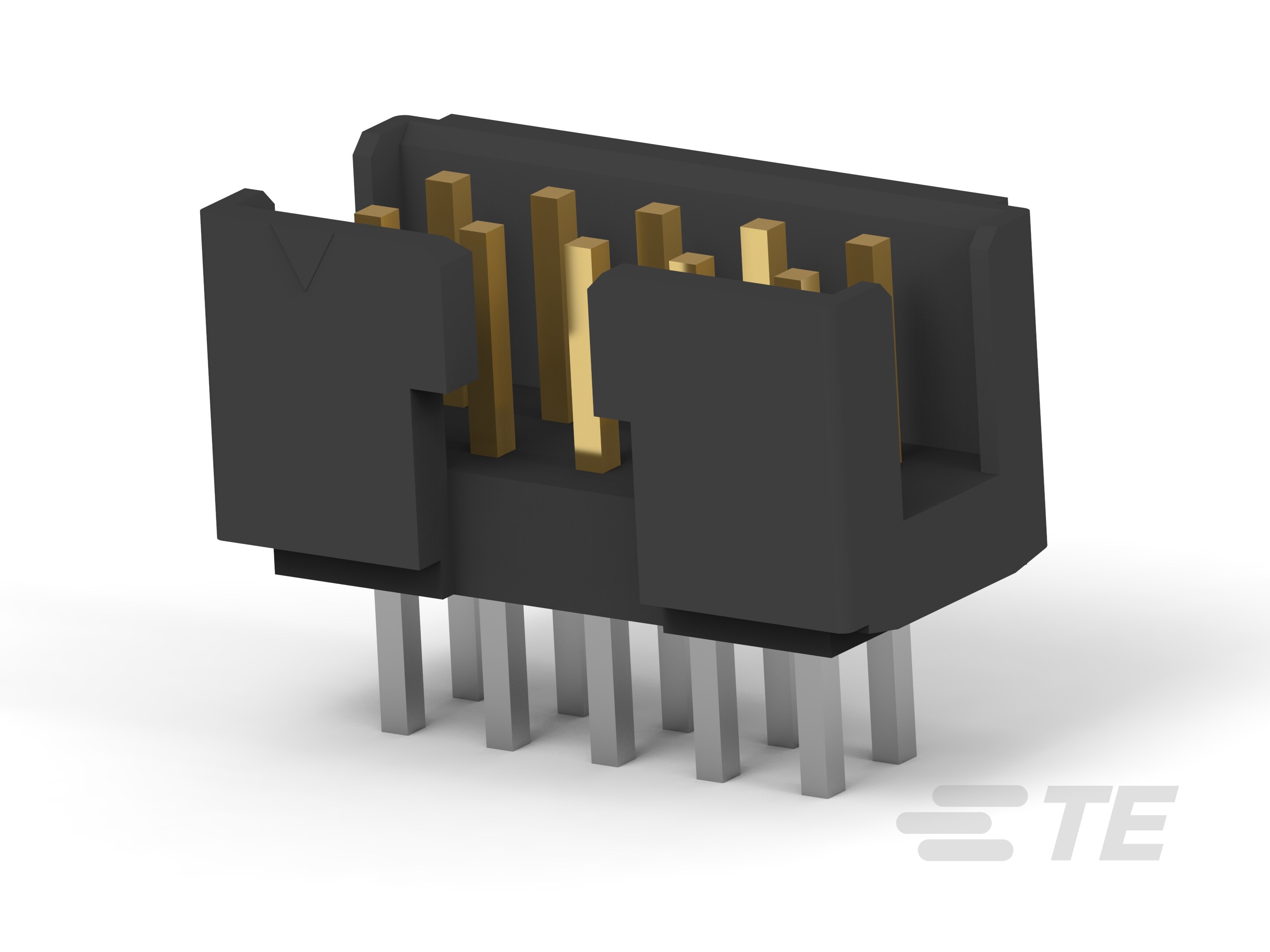

1-2842284-0

10P,2MM,SHRD HDR,DRVT,0.76AU,TB

Technical Specifications

Parameters and characteristics for this part

Specification1-2842284-0
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating30 µin
Contact Length - Mating0.145 in
Contact Length - Post0.11 in
Contact MaterialCopper Alloy
Contact ShapeSquare
Contact TypeMale Pin
Current Rating2 A
Fastening TypeDetent Lock
Insulation ColorBlack
Insulation Height0.238 in
Insulation MaterialThermoplastic
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions10
Number of Positions LoadedAll
Number of Rows2
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
Pitch - Mating0.079 in
Row Spacing - Mating0.079 in
ShroudingShrouded - 2 Wall
StyleBoard, Board or Cable
TerminationSolder
Voltage Rating125 V
Voltage Rating (Type)DC
