CU10Y11R8BAT2A
ActiveKYOCERA AVX
CAP CER 1.8PF 16V C0G/NP0 01005
CU10Y11R8BAT2A
ActiveKYOCERA AVX
CAP CER 1.8PF 16V C0G/NP0 01005
Description
General part information
CU10Y11R8BAT2A

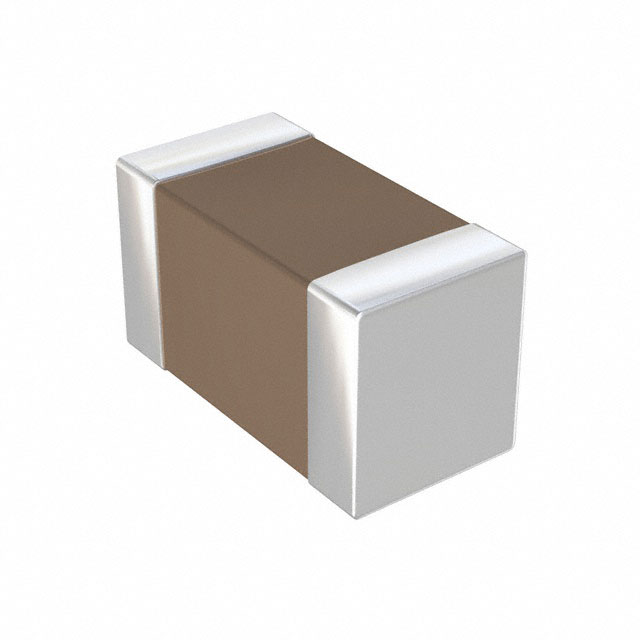

1.8 pF ±0.1pF 16V Ceramic Capacitor C0G, NP0 01005 (0402 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | CU10Y11R8BAT2A |
|---|---|
| Applications | High Frequency, RF, Microwave |
| Capacitance | 1.8 pF |
| Features | Ultra Low ESR |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 01005 (0402 Metric) |
| Size / Dimension Length | 0.016 in |
| Size / Dimension Width | 0.008 in |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) | 0.009 in |
| Tolerance | 0.1 pF |
| Voltage - Rated | 16 V |
