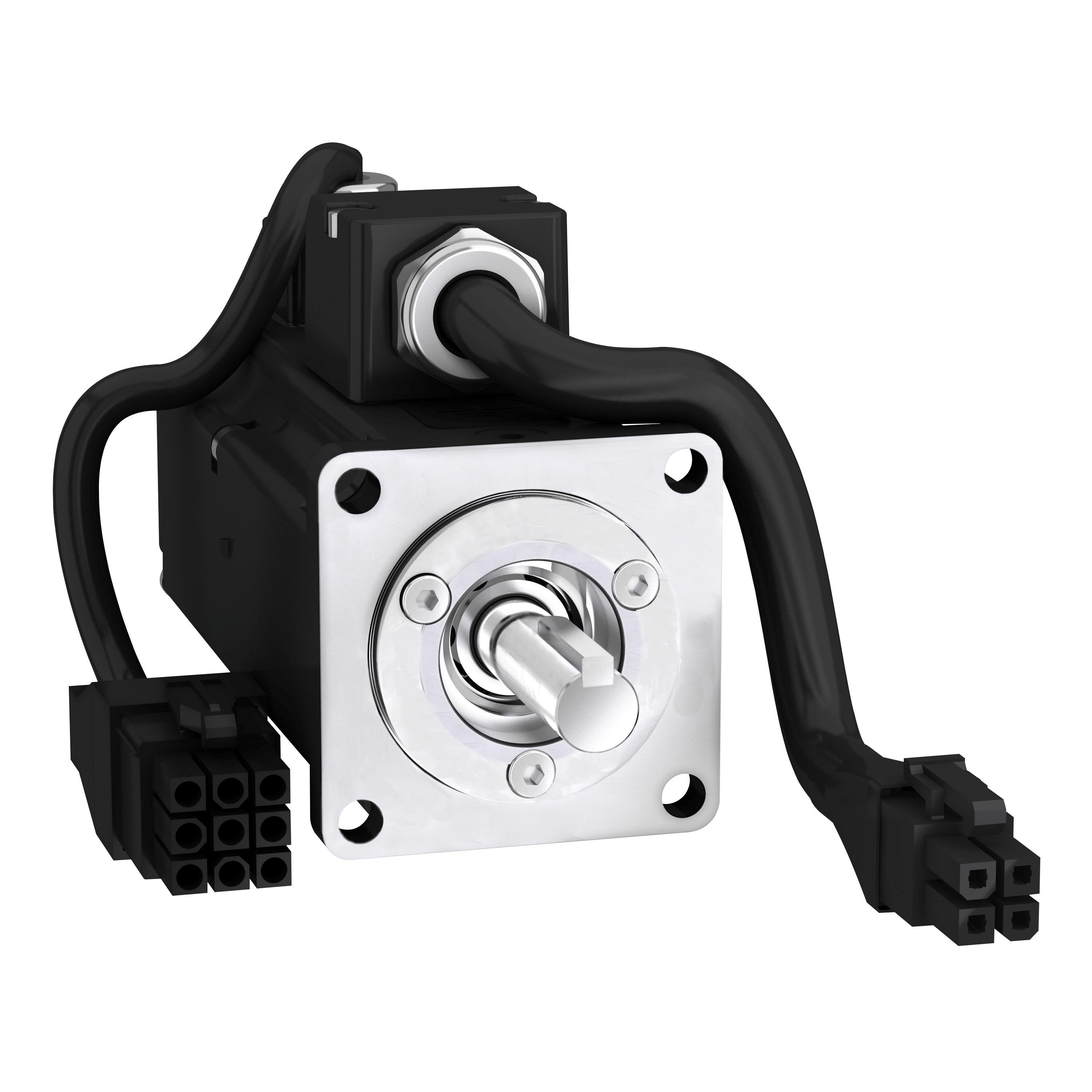

BCH2MB0132CF5C
ActiveSCHNEIDER ELECTRIC
40MM, 100W, IP65, WO KEY, BRK, L
BCH2MB0132CF5C
ActiveSCHNEIDER ELECTRIC
40MM, 100W, IP65, WO KEY, BRK, L
Description
General part information
BCH2MB0132CF5C
AC Motor Servomotor 5000 RPM 100W Absolute 220VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | BCH2MB0132CF5C |
|---|---|
| Diameter - Shaft | 0.315 in |
| Encoder Type | Absolute |
| Features | Brake, Oil Seal |
| Function | Servomotor |
| Length - Shaft and Bearing | 0.98 in |
| Mounting Hole Spacing | 1.18 in |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Power - Rated | 100 W |
| RPM | 5000 RPM |
| Size / Dimension Length | 1.57 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 1.57 in |
| Termination Style | Cable with Connector |
| Torque - Rated (mNm) | 320 mNm |
| Torque - Rated (oz-in) | 45 oz-in |
| Type | AC Motor |
| Voltage - Rated | 220 VAC |
