HS2P9M26-BPE

Active

Switchcraft Inc.

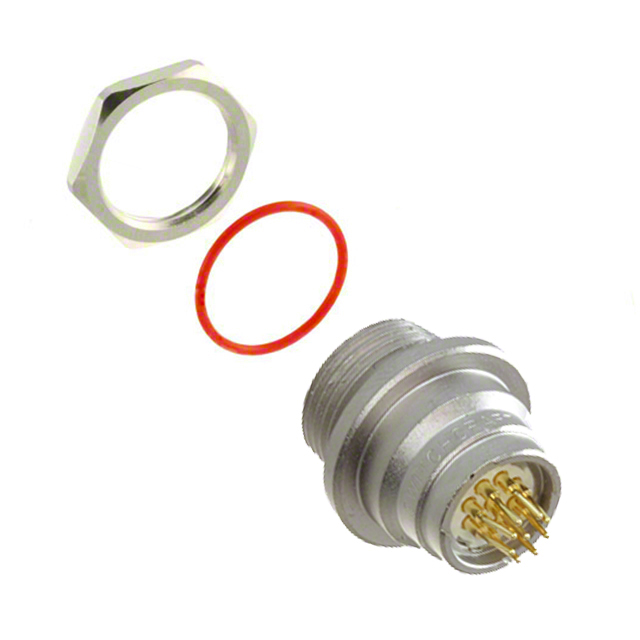

CONN CIRCULAR PIN 9 POS SOLDER ST THRU-HOLE 9 TERMINAL 1 PORT BULK

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN CIRCULAR PIN 9 POS SOLDER ST THRU-HOLE 9 TERMINAL 1 PORT BULK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HS2P9M26-BPE	HS2P9M Series

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver	Silver
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	9	9
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Solder	Solder
Voltage Rating	30 VAC	30 VAC

CONN RCPT MALE 9POS GOLD SOLDER

Part	Number of Positions	Termination	Fastening Type	Orientation	Shell Material	Mounting Type	Color	Contact Material	Contact Finish - Mating	Voltage Rating	Applications	Primary Material	Connector Type	Shielding	Ingress Protection	Shell Finish	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Mounting Feature
Switchcraft Inc. HS2P9M26-BP	9	Solder	Push-Pull	Keyed	Copper Alloy	Panel Mount, Through Hole	Silver	Copper Alloy	Gold	30 VAC	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Metal	Male Pins, Receptacle	Shielded	IP66, IP67, IP68	Electroless Nickel	135 °C	-40 °C	Liquid Crystal Polymer (LCP)	Bulkhead - Front Side Nut
Switchcraft Inc. HS2P9M26-BPE	9	Solder	Push-Pull	Keyed	Copper Alloy	Panel Mount, Through Hole	Silver	Copper Alloy	Gold	30 VAC	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Metal	Male Pins, Receptacle	Shielded	IP66, IP67, IP68	Electroless Nickel	135 °C	-40 °C	Liquid Crystal Polymer (LCP)	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 8.30
Digikey	Bulk	1	$ 33.02

General part information

9 Position Circular Connector Receptacle, Male Pins Solder
