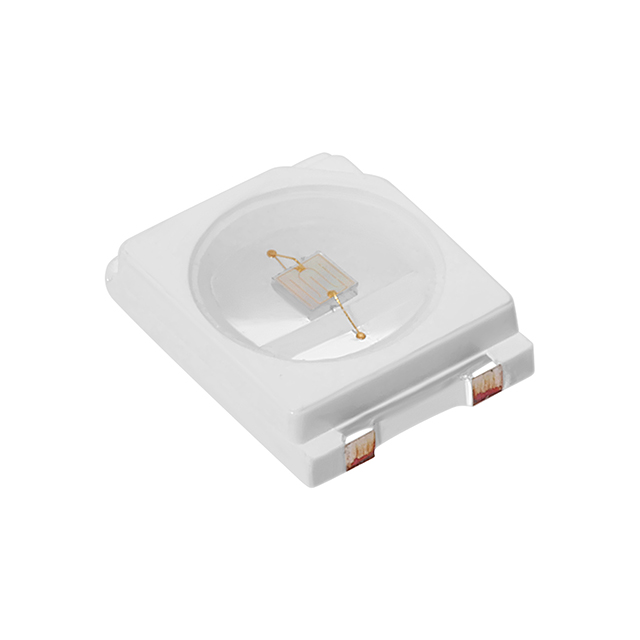

SMTL3528UV-405
ActiveBivar Inc.
3528 SMD LED TOP VIEW PACKAGE, U
SMTL3528UV-405
ActiveBivar Inc.
3528 SMD LED TOP VIEW PACKAGE, U
Description
General part information
SMTL3528UV-405
3528 SMD LED TOP VIEW PACKAGE, U
Technical Specifications
Parameters and characteristics for this part
| Specification | SMTL3528UV-405 |
|---|---|
| Current - DC Forward (If) (Max) | 200 mA |
| Mounting Type | Right Angle, Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Top View |
| Package / Case | No Lead, 2-SMD |
| Radiant Intensity (Ie) Min | 25 mW/sr |
| Type | Ultraviolet (UV) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength | 405 nm |
| Wavelength (Maximum) | 425 nm |
| Wavelength (Minimum) | 395 nm |
| Wavelength (Nominal) | 405 nm |
