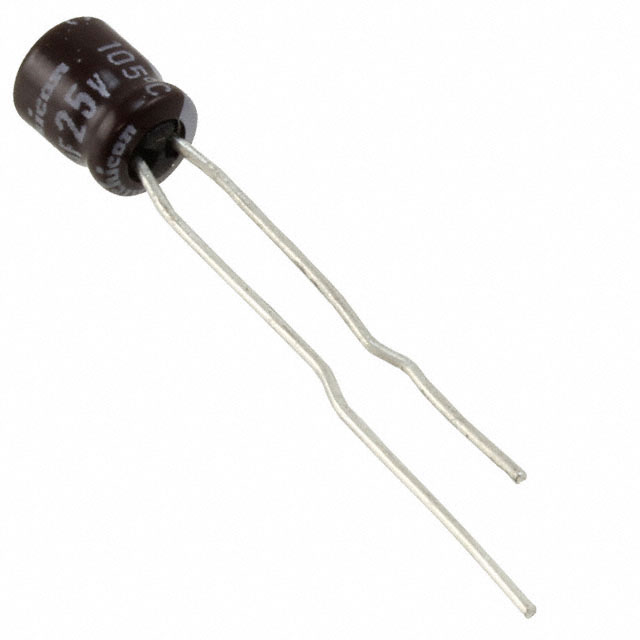

UMF1C100MDD
10 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UMF1C100MDD |
|---|---|
| Applications | General Purpose |
| Capacitance | 10 µF |
| Height - Seated (Max) | 0.236 in |
| Impedance | 5 Ohm |
| Lead Spacing | 0.059 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ripple Current | 25 mA, 50 mA |
| Size / Dimension Diameter | 0.157 in |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
