Description
General part information

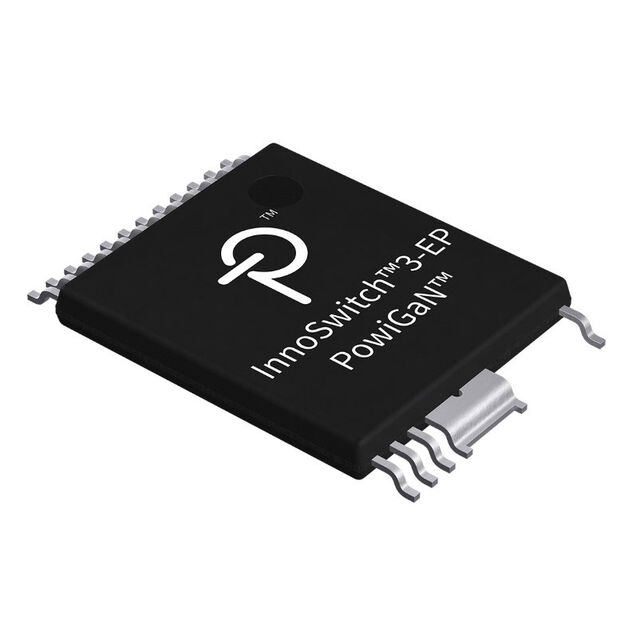

INN3690C-H606-TL
Converter Offline Flyback, Secondary Side SR Topology 70kHz InSOP-24D
Technical Specifications
Parameters and characteristics for this part
| Specification | INN3690C-H606-TL |
|---|---|
| Control Features | EN, Soft Start, Frequency Control |
| Fault Protection | Over Voltage, Over Temperature, Current Limiting, Short Circuit, UVLO |
| Frequency - Switching | 70 kHz |
| Internal Switch(s) | Yes |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output Isolation | Isolated |
| Package Features | 17 Leads |
| Package Length | 0.425 in |
| Package Name | 24-PowerSMD Module, InSOP-24D |
| Package Width | 10.8 mm |
| Topology | Secondary Side SR, Flyback |
| Voltage - Breakdown | 900 V |
| Voltage - Supply (Vcc/Vdd) Maximum | 265 V |
| Voltage - Supply (Vcc/Vdd) Minimum | 85 VAC |
