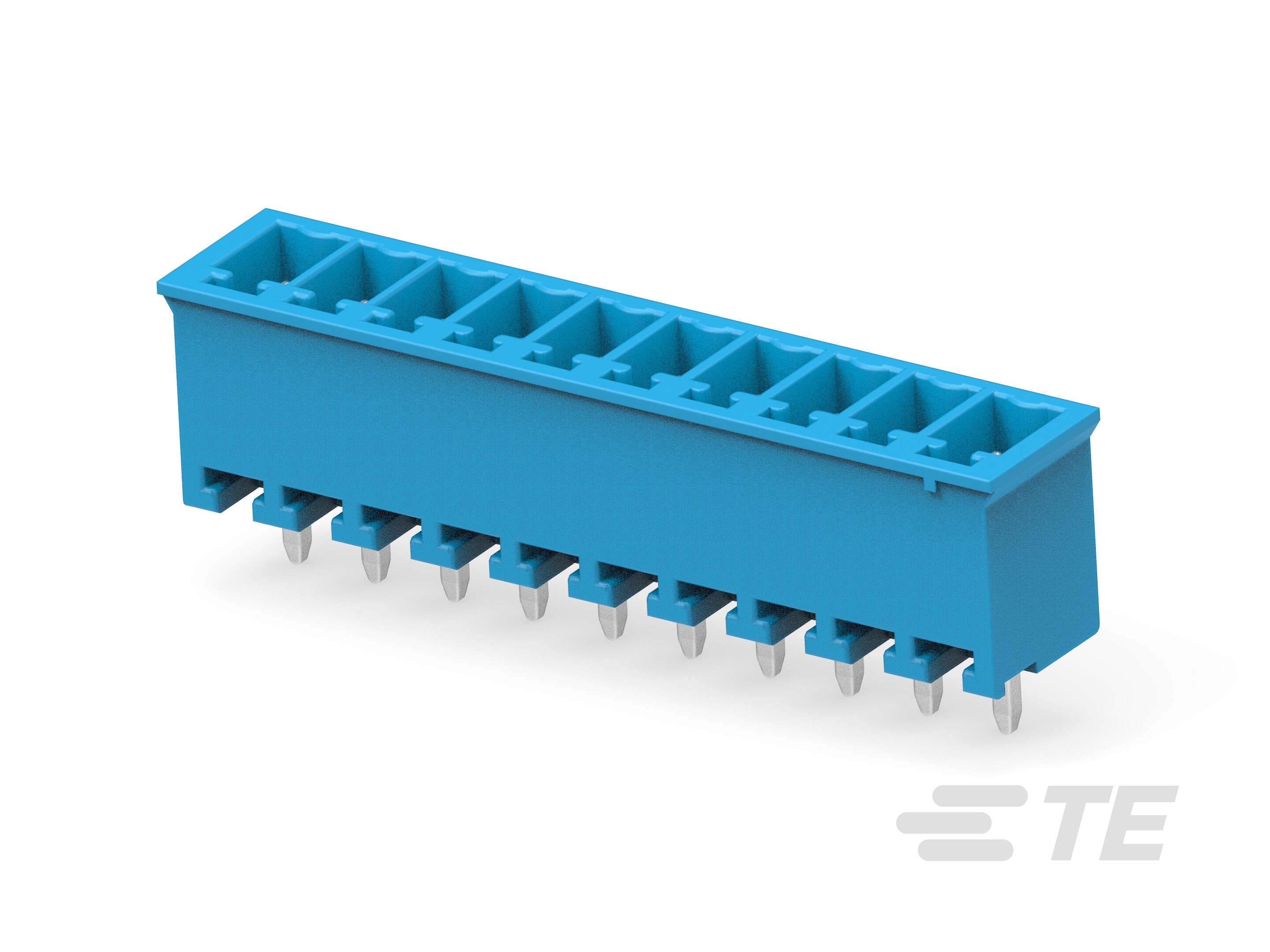

1-796694-0
ActiveTE Connectivity AMP Connectors
10 POS TERMI-BLOK HDR DIR. POL
1-796694-0
ActiveTE Connectivity AMP Connectors
10 POS TERMI-BLOK HDR DIR. POL
Description
General part information
1-796694-0
10 Position PCB Terminal Block, Header, Wire-to-Board, 3.5 mm [.138 in] Centerline, 1 Row, 30 – 14 AWG, .05 – 2 mm² Wire, 300 VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-796694-0 |
|---|---|
| Color | Blue |
| Contact Mating Finish | Tin |
| Current - UL | 11 A |
| Header Orientation | Vertical |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 10 |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.138 in |
| Positions Per Level | 10 |
| Termination Style | Solder |
| Type | Shrouded (4 Side), Male Pins, Header |
| Voltage - UL | 300 V |
