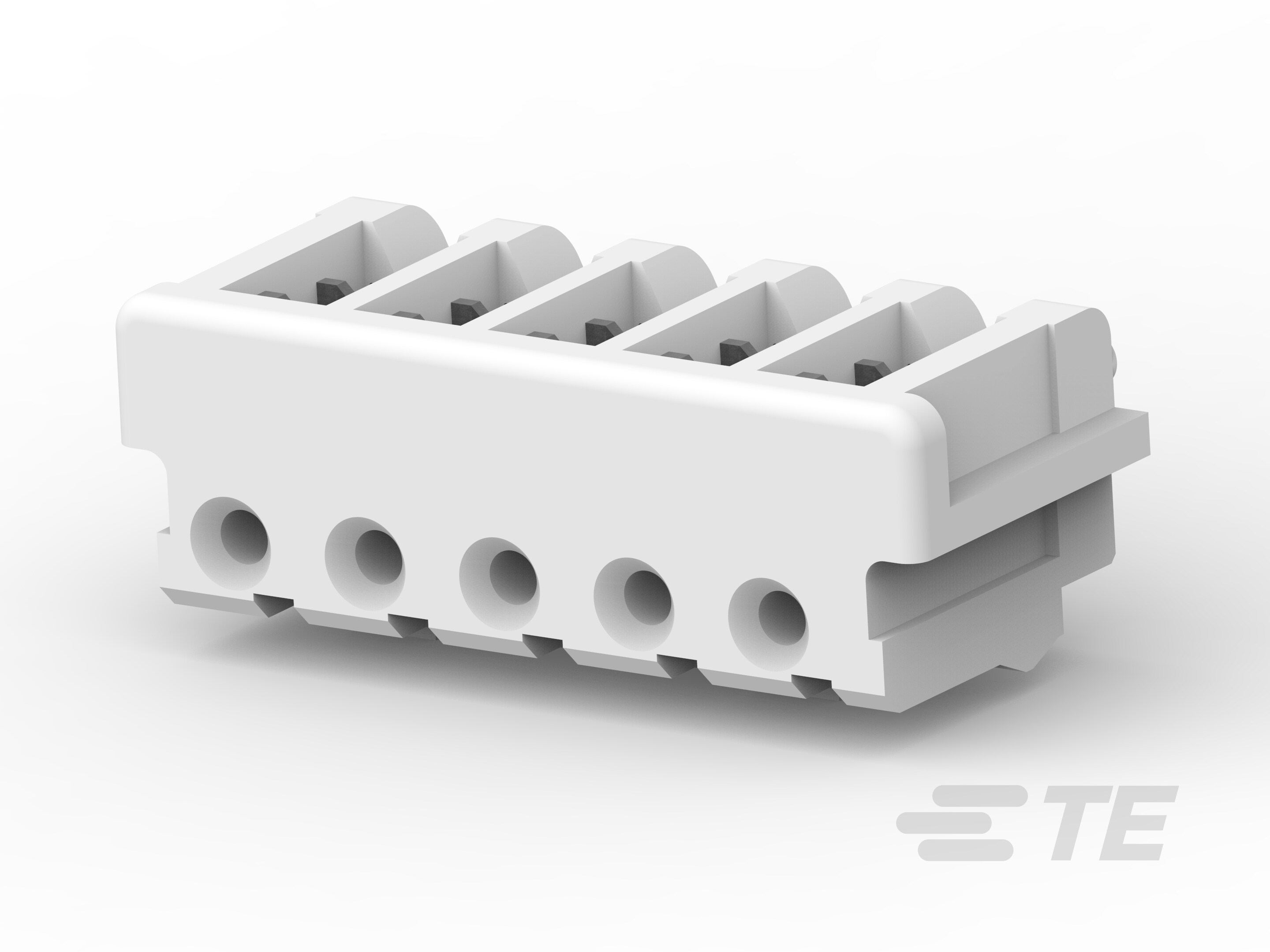

CT CONN MT REC ASSY 5P-173977-5

173977-5

Active
TE Connectivity AMP Connectors

CONN RCPT 5POS IDC 26-28AWG TIN

Find alt
CT CONN MT REC ASSY 5P-173977-5

173977-5

Active
TE Connectivity AMP Connectors

CONN RCPT 5POS IDC 26-28AWG TIN

Find alt

Description

General part information

173977-5

5 Position, Receptacle, Connector Assembly, Insulation Displacement (IDC), Wire-to-Board, 2 mm [.079 in] Centerline, 1 Row, Wire & Cable, AMP CT

Technical Specifications

Parameters and characteristics for this part

Specification173977-5
Cable TerminationIDC
ColorNatural
Connector TypeReceptacle
Contact FinishTin
Contact TypeFemale Socket
Mounting TypeFree Hanging (In-Line)
Number of Positions5
Number of Rows1
Pitch0.079 in
Wire Gauge (AWG) (Max)28 AWG
Wire Gauge (AWG) (Min)26 AWG
Wire TypeDiscrete
