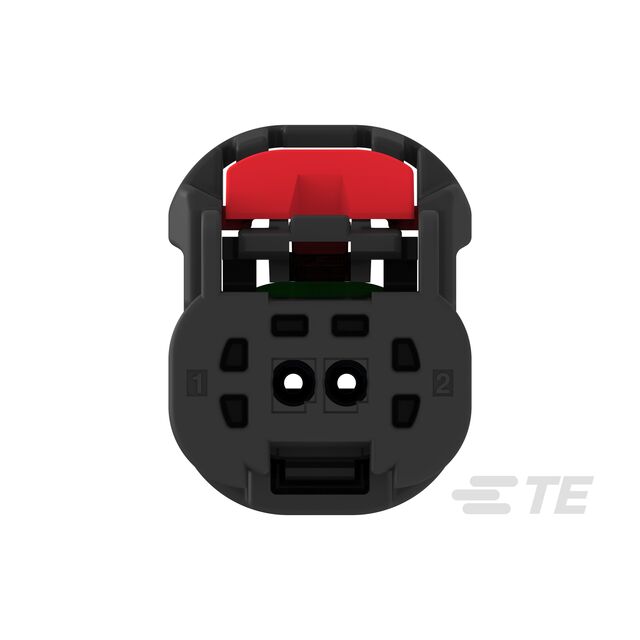

Specification	2292906-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in

enetSEAL+ Series

Part	Color	Cable Termination	Shielding	Number of Rows	Number of Positions	Connector Type	Length	Contact Finish - Mating	Style	Contact Type	Termination	Mounting Type	Insulation Height	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating (Type)	Voltage Rating	Insulation Color	Features	Number of Positions Loaded	Insulation Material	Contact Material	Current Rating	Pitch - Mating	Contact Finish - Post	Contact Shape	Shrouding	Fastening Type	Pitch	Convert From (Adapter End)	Convert To (Adapter End)	Accessory Type
TE Connectivity AMP Connectors 2362353-3	Black	Crimp	Unshielded	1	2	Socket to Socket	4.92 ft
TE Connectivity AMP Connectors 2362354-4	Black	Crimp	Unshielded	1	2	Socket to Plug	9.8 ft
TE Connectivity AMP Connectors 2325102-7				1	2	Header		Gold	Board Cable/Wire	Tab	Solder	Through Hole	1.018 in	125 °C	-40 °C	DC	33 VAC	Black	Board Guide Mounting Flange	All	Glass Filled Nylon Polyamide (PA)	Copper Alloy	10 A	0.1 in	Tin	Rectangular	Shrouded - 4 Wall	Locking Ramp
TE Connectivity AMP Connectors 2325106-1				1	2							Flange Panel Mount																	0.1 in	Male Pins Plug	Male Pins Plug
TE Connectivity AMP Connectors 2362354-3	Black	Crimp	Unshielded	1	2	Socket to Plug	4.92 ft
TE Connectivity AMP Connectors 2325098-4																																Mounting Clip
TE Connectivity AMP Connectors 2325103-1				1	2	Header		Gold	Board Cable/Wire	Tab	Solder	Through Hole	1.018 in	125 °C	-40 °C	DC	33 VAC	Black	Board Guide Mounting Flange	All	Glass Filled Nylon Polyamide (PA)	Copper Alloy	10 A	0.1 in	Tin	Rectangular	Shrouded - 4 Wall	Locking Ramp
TE Connectivity AMP Connectors 2325103-7				1	2	Header		Gold	Board Cable/Wire	Tab	Solder	Through Hole	1.018 in	125 °C	-40 °C	DC	33 VAC	Black	Board Guide Mounting Flange	All	Glass Filled Nylon Polyamide (PA)	Copper Alloy	10 A	0.1 in	Tin	Rectangular	Shrouded - 4 Wall	Locking Ramp
TE Connectivity AMP Connectors 2362353-5	Black	Crimp	Unshielded	1	2	Socket to Socket	16.4 ft
TE Connectivity AMP Connectors 2325098-2																																Mounting Clip
