P022-001-13A
ActiveEaton Tripp Lite
POWER EXTENSION CORD, NEMA 5-15P
P022-001-13A
ActiveEaton Tripp Lite
POWER EXTENSION CORD, NEMA 5-15P
Description
General part information
P022-001-13A

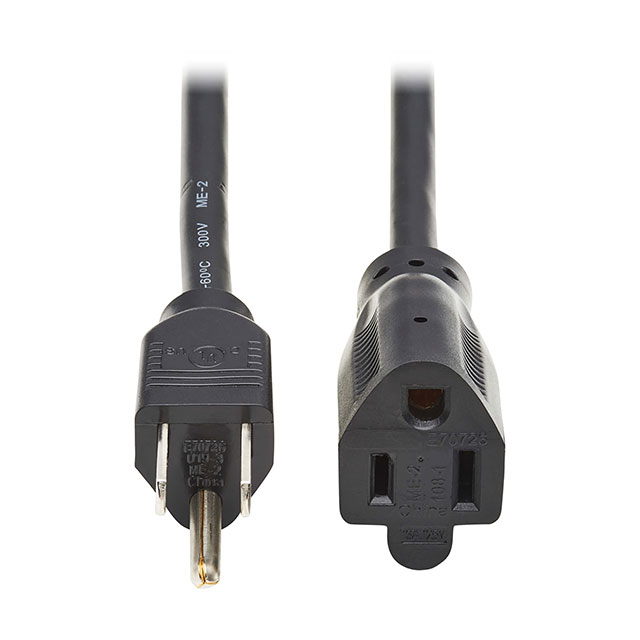

1.00' (304.8mm) Power Cord Black NEMA 5-15P To NEMA 5-15R SJT
Technical Specifications
Parameters and characteristics for this part
| Specification | P022-001-13A |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | NEMA 5-15R |
| Color | Black |
| Cord Type | SJT |
| Current Rating | 13 A |
| Length | 12 in |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 125 V |
| Wire Gauge | 16 AWG |
