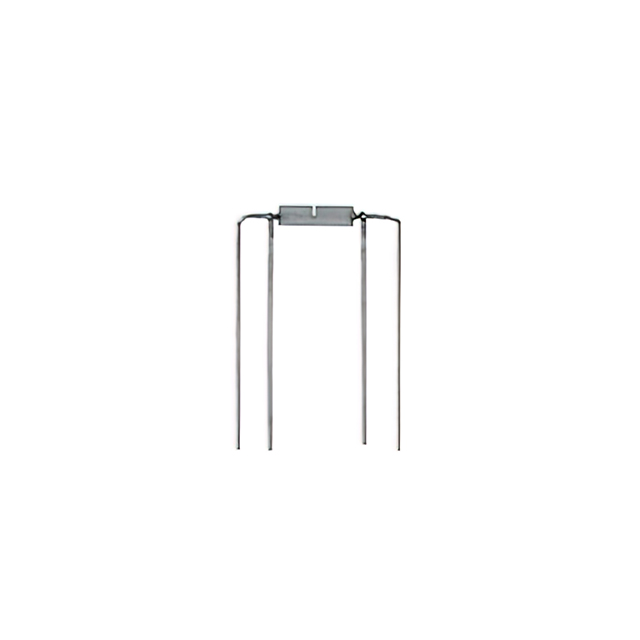

Y09440R65000B9L
ActiveVPG Foil Resistors
VCS332T 0R65000 0.1%
Y09440R65000B9L
ActiveVPG Foil Resistors
VCS332T 0R65000 0.1%
Description
General part information
Y09440R65000B9L
650 mOhms ±0.1% 10W Through Hole Resistor Radial - 4 Leads Current Sense, Non-Inductive Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | Y09440R65000B9L |
|---|---|
| Composition | Metal Foil |
| Features | Current Sense, Non-Inductive |
| Height - Seated (Max) | 1.024 in |
| Number of Terminations | 4 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package Leads | 4 Leads |
| Package Name | Radial - 4 Leads, Radial |
| Power (Watts) | 10 W |
| Resistance | 650 mOhms |
| Size / Dimension Length | 1.34 in |
| Size / Dimension Width | 0.21 in |
| Temperature Coefficient | 3 ppm/°C |
| Tolerance | 0.1 % |
