Description
General part information
21038213505

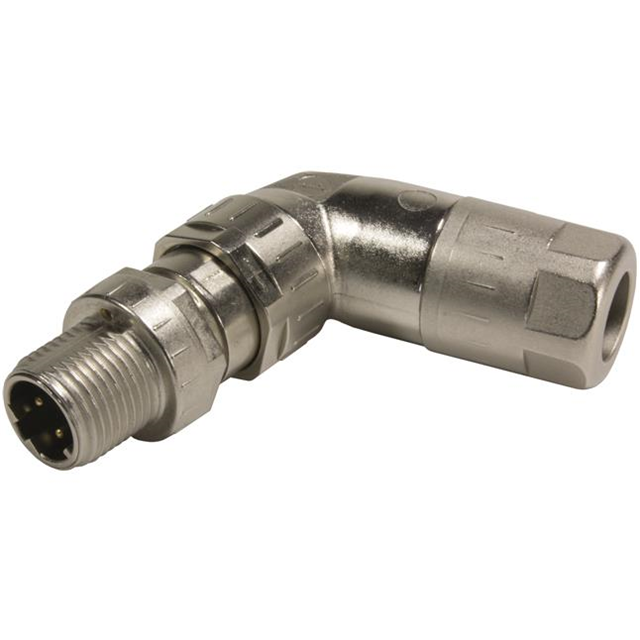

5 Position Circular Connector Receptacle Housing Free Hanging (In-Line), Angled Backshell
Technical Specifications
Parameters and characteristics for this part
| Specification | 21038213505 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Type | Crimp |
| Fastening Type | Push-Twist |
| Features | Backshell |
| Housing Color | Silver |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Insert Material | LCP, Liquid Crystal Polymer |
| Mounting Type | Free Hanging (In-Line), Angled |
| Note | Contacts Not Included |
| Number of Positions | 5 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M12-5 |
| Shielding | Shielded |
| Type | For Male Pins |
