EN3P14MRAPCBW
ActiveSwitchcraft Inc.

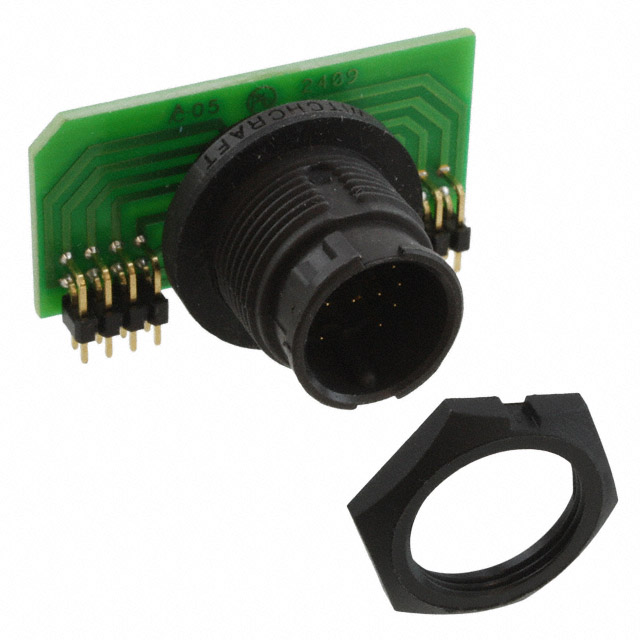

CONN RCPT MALE 14POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3P14MRAPCBW
ActiveSwitchcraft Inc.
CONN RCPT MALE 14POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3P14MRAPCBW | EN3P14 Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 2 A | 2 - 3 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Panel Mount, Right Angle |
| Number of Positions | 14 | 14 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Circuit Board, Solder | Solder, Circuit Board, Solder |
| Voltage Rating | 250 VAC | 250 VAC |
EN3P14 Series
CONN RCPT MALE 14POS GOLD SOLDER
| Part | Mounting Feature | Material Flammability Rating | Applications | Fastening Type | Mounting Type | Ingress Protection | Color | Shielding | Number of Positions | Connector Type | Insert Material | Primary Material | Current Rating (Amps) | Orientation | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Termination | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3P14M26PX | Bulkhead - Front Side Nut | UL94 V-0 | General Purpose, Instrumentation, Marine, Medical | Bayonet Lock | Panel Mount, Through Hole | IP66/IP68 | Black | Unshielded | 14 | Male Pins, Receptacle | Elastomer | Plastic | 3 A | Keyed | Copper Alloy | 65 °C | -40 °C | 250 VAC | Solder | Gold |
Switchcraft Inc. EN3P14FRAPCBN | Bulkhead - Front Side Nut | UL94 V-0 | General Purpose, Instrumentation, Marine, Medical | Bayonet Lock | Panel Mount, Right Angle, Through Hole | IP66/IP68 | Black | Unshielded | 14 | Receptacle, Female Sockets | Elastomer | Plastic | 2 A | Keyed | Copper Alloy | 65 °C | -40 °C | 250 VAC | Circuit Board, Solder | Gold |
Switchcraft Inc. EN3P14FRAPCBW | Bulkhead - Front Side Nut | UL94 V-0 | General Purpose, Instrumentation, Marine, Medical | Bayonet Lock | Panel Mount, Right Angle, Through Hole | IP66/IP68 | Black | Unshielded | 14 | Receptacle, Female Sockets | Elastomer | Plastic | 2 A | Keyed | Copper Alloy | 65 °C | -40 °C | 250 VAC | Circuit Board, Solder | Gold |
Switchcraft Inc. EN3P14F26SX | Bulkhead - Front Side Nut | UL94 V-0 | General Purpose, Instrumentation, Marine, Medical | Bayonet Lock | IP66/IP68 | Black | Unshielded | 14 | Receptacle, Female Sockets | Elastomer | Plastic | 3 A | Keyed | Copper Alloy | 65 °C | -40 °C | 250 VAC | Gold | ||
Switchcraft Inc. EN3P14M26SX | Bulkhead - Front Side Nut | UL94 V-0 | General Purpose, Instrumentation, Marine, Medical | Bayonet Lock | IP66/IP68 | Black | Unshielded | 14 | Male Pins, Receptacle | Elastomer | Plastic | 3 A | Keyed | Copper Alloy | 65 °C | -40 °C | 250 VAC | Gold | ||
Switchcraft Inc. EN3P14MRAPCBW | Bulkhead - Front Side Nut | UL94 V-0 | General Purpose, Instrumentation, Marine, Medical | Bayonet Lock | Panel Mount, Right Angle, Through Hole | IP66/IP68 | Black | Unshielded | 14 | Male Pins, Receptacle | Elastomer | Plastic | 2 A | Keyed | Copper Alloy | 65 °C | -40 °C | 250 VAC | Circuit Board, Solder | Gold |
Switchcraft Inc. EN3P14MRAPCBN | Bulkhead - Front Side Nut | UL94 V-0 | General Purpose, Instrumentation, Marine, Medical | Bayonet Lock | Panel Mount, Right Angle, Through Hole | IP66/IP68 | Black | Unshielded | 14 | Male Pins, Receptacle | Elastomer | Plastic | 2 A | Keyed | Copper Alloy | 65 °C | -40 °C | 250 VAC | Circuit Board, Solder | Gold |
