917353-1

Active

TE Connectivity AMP Connectors

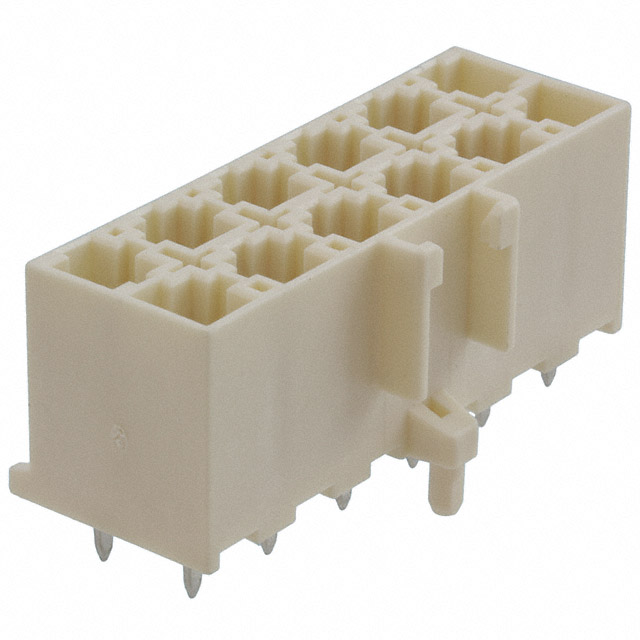

CONN HEADER VERT 12POS 6.5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 12POS 6.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	917353-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Tab
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.575 in
Insulation Height	14.6 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch - Mating	6.5 mm
Pitch - Mating	0.256 in
Row Spacing - Mating	6.5 mm
Row Spacing - Mating	0.256 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder

CONN HEADER VERT 12POS 6.5MM

Part	Contact Shape	Termination	Number of Positions Loaded	Shrouding	Insulation Material	Applications	Number of Positions	Style	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Insulation Height	Insulation Height	Connector Type	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Features	Number of Rows	Insulation Color	Mounting Type	Contact Material	Current Rating (Amps)	Contact Type
TE Connectivity AMP Connectors 917353-1	Rectangular	Kinked Pin, Solder	All	Shrouded - 4 Wall	Polyamide (PA66), Nylon 6/6	General Purpose	12	Board to Cable/Wire	-30 ░C	105 ░C	6.5 mm	0.256 in	6.5 mm	0.256 in	UL94 V-0	0.575 in	14.6 mm	Header	Locking Ramp	0.15 in	3.81 mm	Tin	Board Guide	2	Natural	Through Hole	Copper Alloy	Varies by Wire Gauge	Tab
