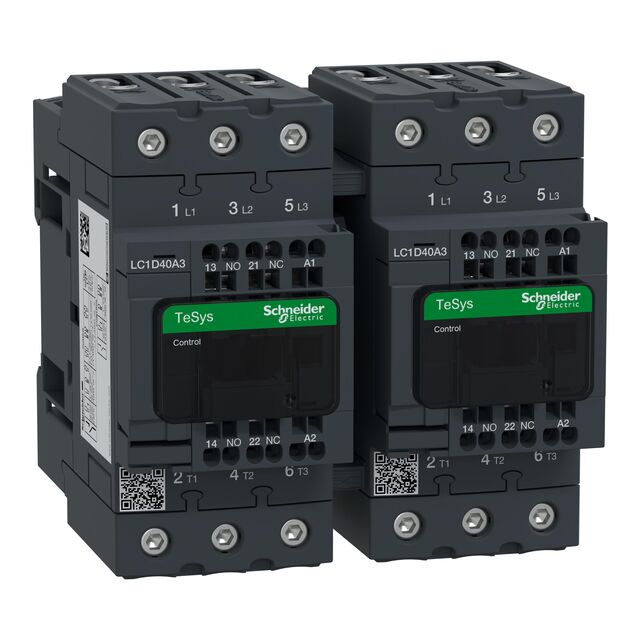

LC2D40A3FE7
ActiveSCHNEIDER ELECTRIC
TESYS 3P EVLK REVERS CTR40A115VA
LC2D40A3FE7
ActiveSCHNEIDER ELECTRIC
TESYS 3P EVLK REVERS CTR40A115VA
Description
General part information
LC2D40A3FE7
TESYS 3P EVLK REVERS CTR40A115VA
Technical Specifications
Parameters and characteristics for this part
| Specification | LC2D40A3FE7 |
|---|---|
| Coil Voltage | 115 VAC |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 40 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 92 VAC |
| Must Release Voltage | 34.5 V |
| Must Release Voltage Type | AC |
| Operate Time | 26 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 3 pins |
| Release Time | 19 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Switching Voltage DC (Max) | 300 VDC |
| Termination Style | Spring Terminal |
