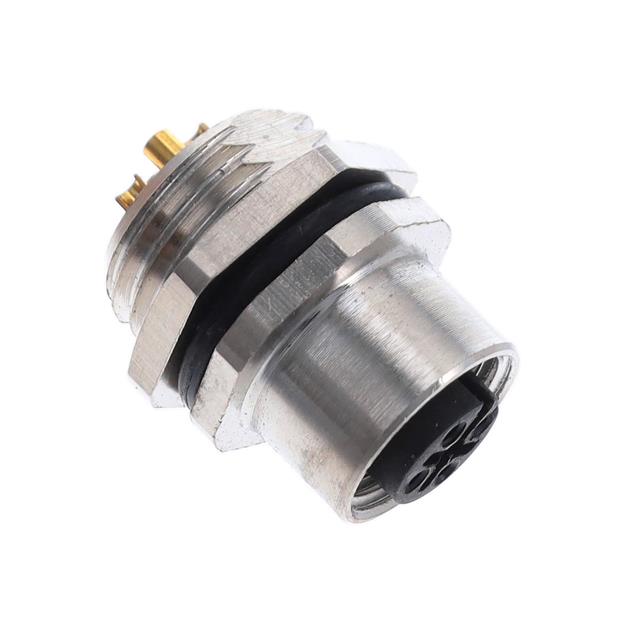

ALBKF12-FMBR4-SL
ActiveAltech Corporation
BULKHEAD CONN. M12 FRONT MT. 4-P
ALBKF12-FMBR4-SL
ActiveAltech Corporation
BULKHEAD CONN. M12 FRONT MT. 4-P
Description
General part information
ALBKF12-FMBR4-SL
4 Position Circular Connector Plug, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | ALBKF12-FMBR4-SL |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Fastening Type | Threaded |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount |
| Number of Positions | 4 |
| Orientation | A |
| Shell Material | Brass |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | Solder Cup |
