Description
General part information

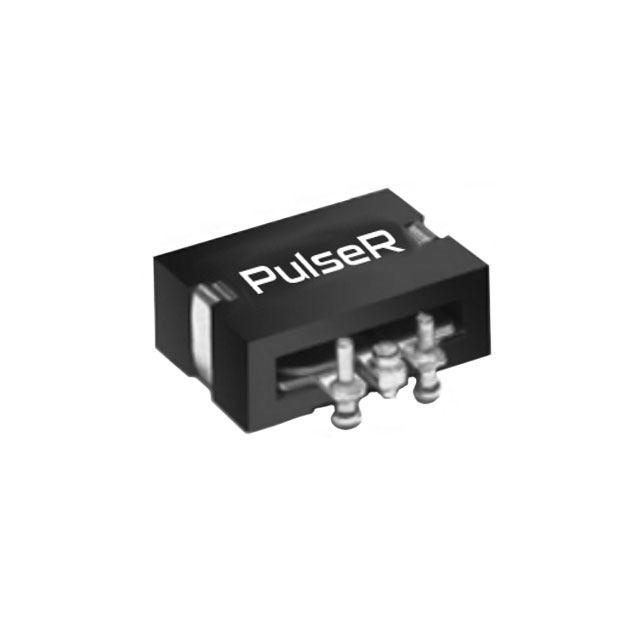

PL10102T
910 nH Unshielded Planar Inductor 39 A 0.48mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PL10102T |
|---|---|
| Current - Saturation (Isat) | 46 A |
| Current Rating | 39 A |
| DC Resistance (DCR) (Max) | 0.48 mOhm |
| Height - Seated (Max) | 0.29 in |
| Inductance | 910 nH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.78 in |
| Size / Dimension Width | 0.77 in |
| Tolerance | 15 % |
| Type | Planar |
