XS218SAMAU20
ActiveSCHNEIDER ELECTRIC
INDUCTIVE SENSOR 264VAC 300MA XS
XS218SAMAU20
ActiveSCHNEIDER ELECTRIC
INDUCTIVE SENSOR 264VAC 300MA XS
Description
General part information
XS218SAMAU20

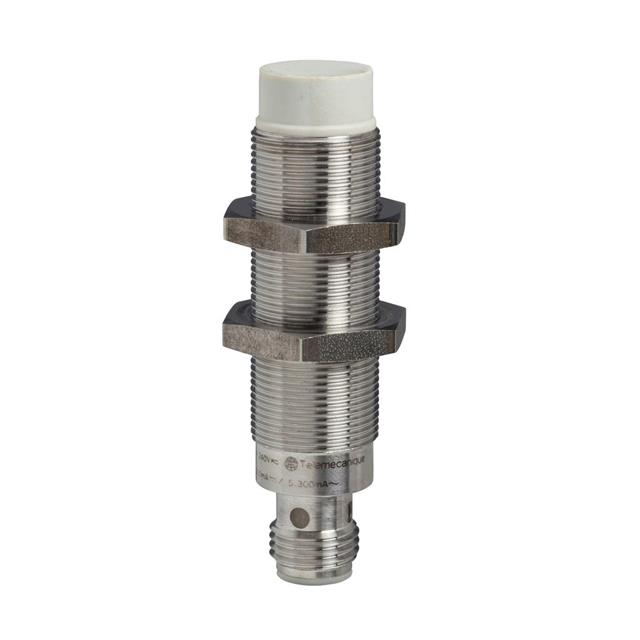

Inductive Proximity Sensor 0.472" (12mm) IP67, IP69K Cylinder, Threaded - M18
Technical Specifications
Parameters and characteristics for this part
| Specification | XS218SAMAU20 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP69K, IP67 |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NO, 2-Wire |
| Package / Case | Cylinder, Threaded - M18 |
| Sensing Distance | 0.472 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 24 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
