177766-1
ActiveTE Connectivity AMP Connectors
CONN INLINE TAP 22-24 AWG IDC
177766-1
ActiveTE Connectivity AMP Connectors
CONN INLINE TAP 22-24 AWG IDC
Description
General part information
177766-1

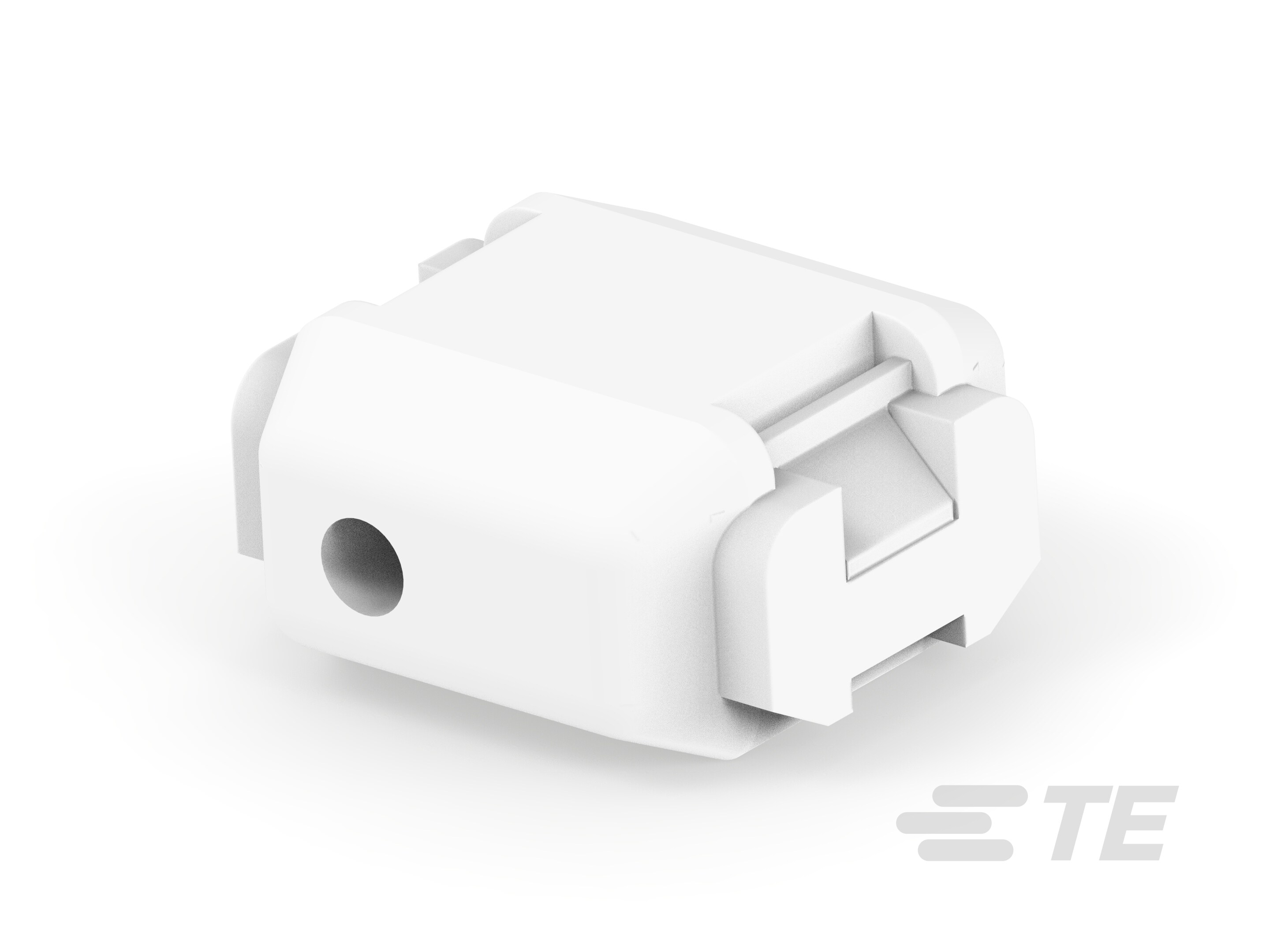

Tap Splice, 24 – 22 AWG, .2 – .4 mm² Wire, 404 – 643 CMA, Brass, 12 mm [.472 in] Length, Bag, Solid / Stranded Wire, Copper Wire, ELECTRO-TAP
Technical Specifications
Parameters and characteristics for this part
| Specification | 177766-1 |
|---|---|
| Color | Natural |
| Features | Hinged Lid |
| Insulation | Fully Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Inline, Tap |
| Termination | IDC |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
