1012AW188
ActiveKanebridge
SELF-TAPPING SCREW - TYPE A - IN
1012AW188
ActiveKanebridge
SELF-TAPPING SCREW - TYPE A - IN
Description
General part information
1012AW188

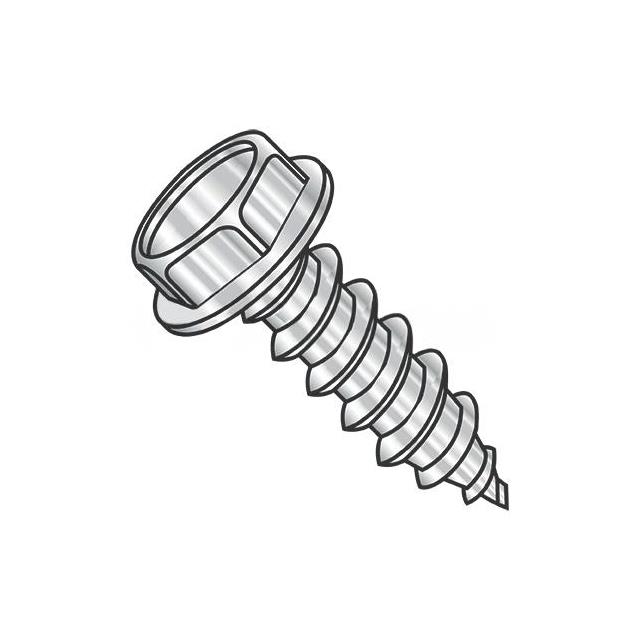

#10-12 Indented Hex Head Self-Tapping Screw External Hex Drive Stainless Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1012AW188 |
|---|---|
| Drive Type | External Hex, Hex Socket |
| Features | Washer Included |
| Head Diameter | 0.309 in |
| Head Height | 0.113 in |
| Length - Below Head | 0.75 in |
| Length - Overall | 0.863 in |
| Material | Stainless Steel |
| Plating | Plain |
| Screw Head Type | Indented Hex Head |
| Thread Size | #10-12 |
| Type | Self-Tapping Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
