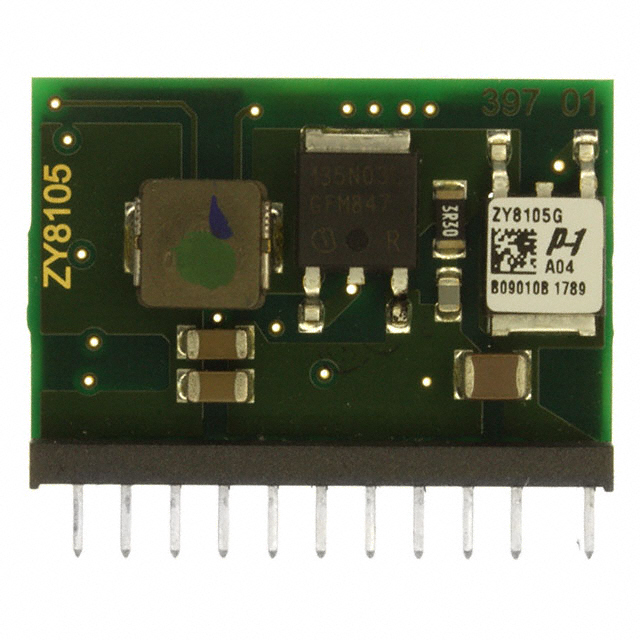

Specification	ZY8105G-R1

Applications	ITE (Commercial)
Current - Output (Max)	5 A
Efficiency	92.4 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	0 °C
Package / Case	11-SIP Module
Size / Dimension Height	0.84 in
Size / Dimension Length	1.2 in
Size / Dimension Width	0.26 in
Type	Digital, Non-Isolated PoL Module
Voltage - Input (Max)	14 V
Voltage - Input (Min)	8 V
Voltage - Output 1 (Max)	5.5 V
Voltage - Output 1 (Min)	0.5 V
