Description
General part information

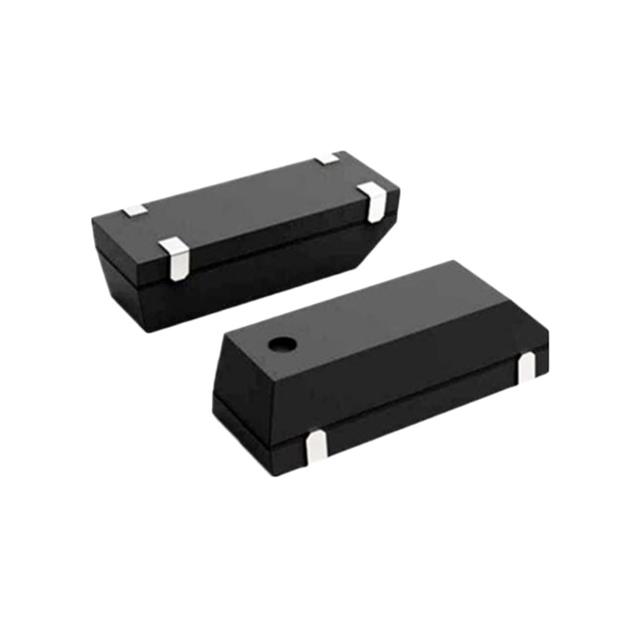

YG19M20000S412
19.2 MHz ±20ppm Crystal 12pF 80 Ohms 4-SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | YG19M20000S412 |
|---|---|
| ESR (Equivalent Series Resistance) | 80 Ohm |
| Frequency | 19.2 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) | 0.098 in |
| Load Capacitance | 12 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, J-Lead |
| Size / Dimension Length | 0.315 in |
| Size / Dimension Width | 0.15 in |
| Type | MHz Crystal |
