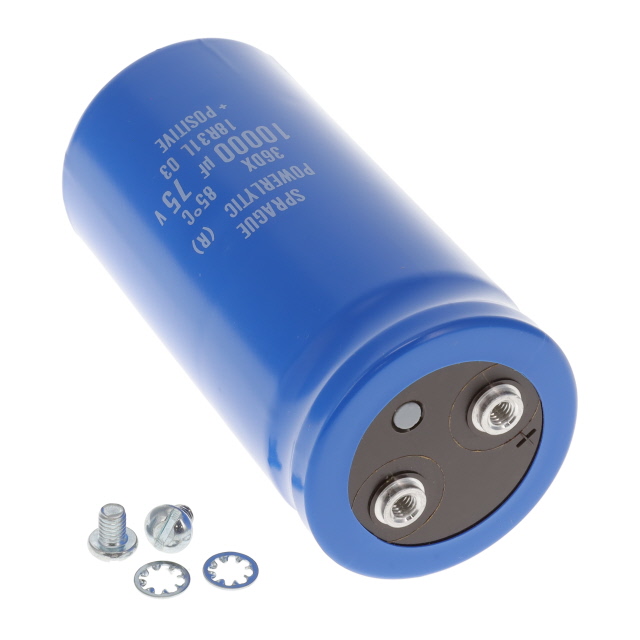

36DX103G075BC2A
ObsoleteVishay Dale
CAP ALUM 10000UF 75V SCREW CHAS
36DX103G075BC2A
ObsoleteVishay Dale
CAP ALUM 10000UF 75V SCREW CHAS
Description
General part information
36DX103G075BC2A
10000 µF 75 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | 36DX103G075BC2A |
|---|---|
| Applications | General Purpose |
| Capacitance | 10000 µF |
| Height - Seated (Max) | 4.252 in |
| Lead Spacing | 0.875 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Size / Dimension Diameter | 2.079 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 75 % |
| Voltage - Rated | 75 V |
