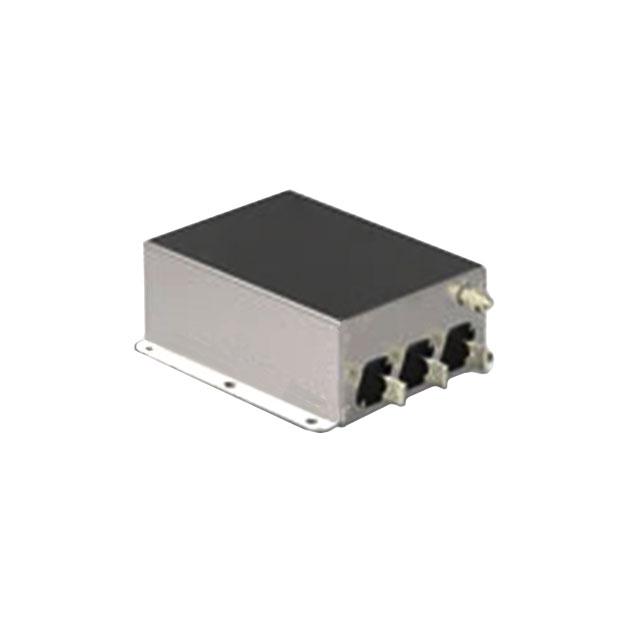

1600APH12P

Active

TE Connectivity Corcom Filters

LINE FILTER 690VAC 1.6KA CHASSIS

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

LINE FILTER 690VAC 1.6KA CHASSIS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1600APH12P	1600 Series

Applications	General Purpose	General Purpose
Configuration	Three Stage	Three Stage
Current	1.6 kA	1.6 kA
Filter Type	Three Phase (Delta)	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max] [custom]	50 °C	50 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Termination Style	Terminal Post	Terminal Post
Voltage - Rated AC	690 V	520 - 690 V

LINE FILTER 520VAC 1.6KA CHASSIS

Part	Termination Style	Configuration	Voltage - Rated AC	Current	Applications	Mounting Type	Frequency - Operating [Max]	Frequency - Operating [Min]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Filter Type
TE Connectivity Corcom Filters 1600APH12L	Terminal Post	Three Stage	520 V	1.6 kA	General Purpose	Chassis Mount	60 Hz	50 Hz	-10 °C	50 °C	Three Phase (Delta)
TE Connectivity Corcom Filters 1600APH12P	Terminal Post	Three Stage	690 V	1.6 kA	General Purpose	Chassis Mount	60 Hz	50 Hz	-10 °C	50 °C	Three Phase (Delta)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 2365.86

General part information

Three Phase (Delta) EMC/EMI Line Filter 1.6 kA 690V 50/60Hz Three Stage Terminal Post
