P006-L03-HG10
ActiveEaton Tripp Lite
HOSPITAL-GRADE POWER CORD, NEMA
P006-L03-HG10
ActiveEaton Tripp Lite
HOSPITAL-GRADE POWER CORD, NEMA
Description
General part information
P006-L03-HG10

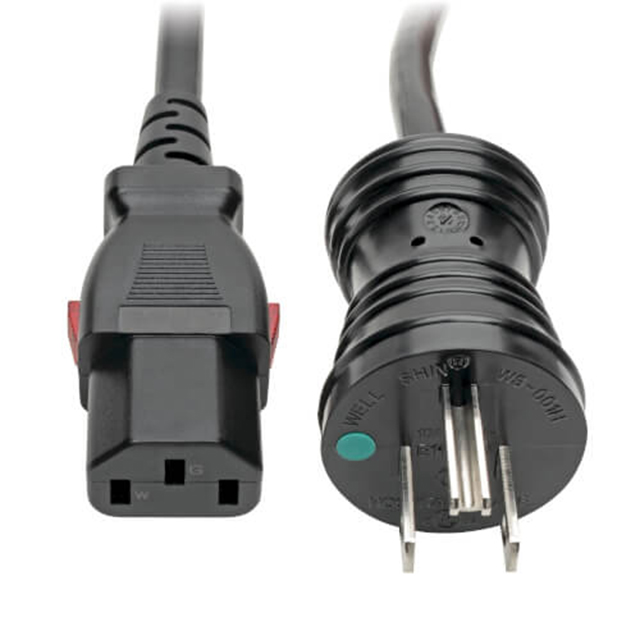

3.00' (914.4mm) Power Cord Black NEMA 5-15P To IEC 320-C13 SJT
Technical Specifications
Parameters and characteristics for this part
| Specification | P006-L03-HG10 |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | IEC 320-C13 |
| Approval Agency Marking | cUL, UL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SJT |
| Current Rating | 10 A |
| Features | Locking, Hospital Grade |
| Length | 3 ft |
| Number of Conductors | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Shielding | Unshielded |
| Style | Female Sockets (Slots), Male Pins (Blades) |
| Voltage Rating | 125 V |
| Wire Gauge | 18 AWG |
