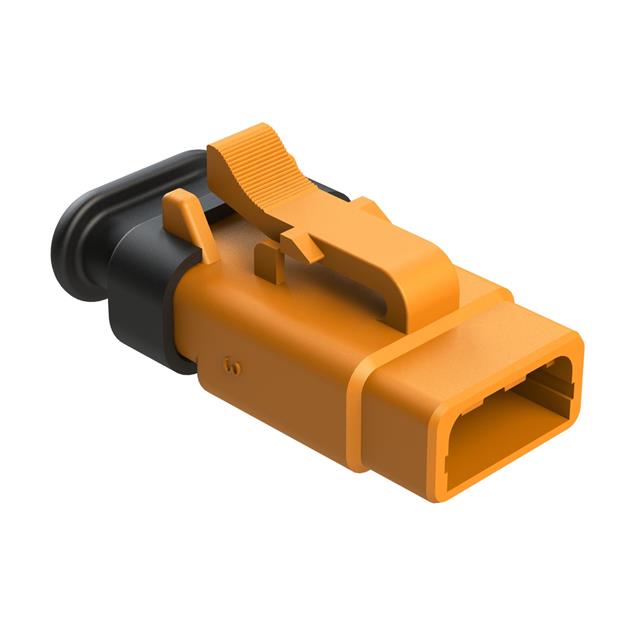

Specification	ATM06-3S-SR01OR

Color	Orange
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	IP67, Sealed, Strain Relief, Cap (Cover)
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

ATM06 Series

Part	Fastening Type	Number of Rows	Features	Mounting Type	Connector Type	Contact Type	Insulation Material	Contact Termination	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Color	Accessory Type	For Use With/Related Products	Note
McGill Microwave Systems ATM06-2S-SR01YL	Latch Lock	1	Cap (Cover) IP67 Sealed Strain Relief	Free Hanging (In-Line)	Plug	Female Socket	Thermoplastic	Crimp	125 °C	-55 °C	2	Yellow
McGill Microwave Systems ATM06-12SD-CAP			IP68								12		Cap (Cover) Protective	ATM Series
McGill Microwave Systems ATM06-4S-SR01BK	Latch Lock	2	Cap (Cover) IP67 Sealed Strain Relief	Free Hanging (In-Line)	Plug	Female Socket	Thermoplastic	Crimp	125 °C	-55 °C	4	Black
McGill Microwave Systems ATM06-2S-SR01BL	Latch Lock	1	Cap (Cover) IP67 Sealed Strain Relief	Free Hanging (In-Line)	Plug	Female Socket	Thermoplastic	Crimp	125 °C	-55 °C	2	Blue
McGill Microwave Systems ATM06-4S	Latch Lock	2	Sealed	Free Hanging (In-Line)	Plug	Female Socket	Thermoplastic	Crimp	125 °C	-55 °C	4	Gray			Contacts Not Included
McGill Microwave Systems ATM06-4S-SR01YL	Latch Lock	2	Cap (Cover) IP67 Sealed Strain Relief	Free Hanging (In-Line)	Plug	Female Socket	Thermoplastic	Crimp	125 °C	-55 °C	4	Yellow
McGill Microwave Systems ATM06-3S-SR01YL	Latch Lock	1	Cap (Cover) IP67 Sealed Strain Relief	Free Hanging (In-Line)	Plug	Female Socket	Thermoplastic	Crimp	125 °C	-55 °C	3	Yellow
McGill Microwave Systems ATM06-6S-SR01GN	Latch Lock	3	Cap (Cover) IP67 Sealed Strain Relief	Free Hanging (In-Line)	Plug	Female Socket	Thermoplastic	Crimp	125 °C	-55 °C	6	Green
McGill Microwave Systems ATM06-6S-SR01OR	Latch Lock	3	Cap (Cover) IP67 Sealed Strain Relief	Free Hanging (In-Line)	Plug	Female Socket	Thermoplastic	Crimp	125 °C	-55 °C	6	Orange
McGill Microwave Systems ATM06-2S-SR01RED	Latch Lock	1	Cap (Cover) IP67 Sealed Strain Relief	Free Hanging (In-Line)	Plug	Female Socket	Thermoplastic	Crimp	125 °C	-55 °C	2	Red
