PBC12SFBN

Active

Sullins Connector Solutions

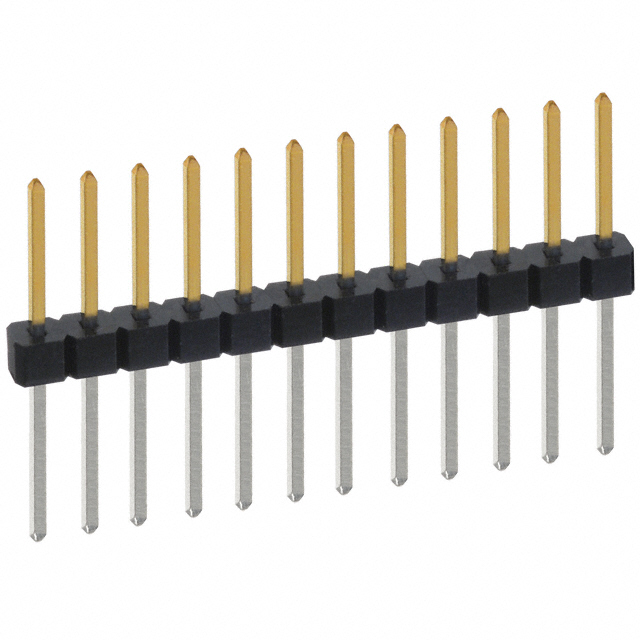

CONN HEADER VERT 12POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PBC12SFBN

Active

Sullins Connector Solutions

CONN HEADER VERT 12POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBC12SFBN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	0.22 in
Contact Length - Post	5.58 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	16.21 mm
Overall Contact Length	0.638 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PBC12 Series

Part	Contact Length - Post	Contact Length - Post	Style	Current Rating (Amps)	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Mounting Type	Insulation Color	Pitch - Mating	Pitch - Mating	Termination	Contact Finish - Post	Shrouding	Contact Type	Connector Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Material Flammability Rating	Insulation Material	Contact Shape	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length
Sullins Connector Solutions PBC12DFBN	0.22 in	5.58 mm	Board to Board Cable	3 A	Gold	125 °C	-65 ░C	Phosphor Bronze	16.21 mm	0.638 in	All	2.54 µm	100 µin	24	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Through Hole	Black	0.1 in	2.54 mm	Solder	Tin	Unshrouded	Male Pin	Breakaway Header	0.318 "	8.08 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Square	Push-Pull	10 çin	0.25 çm
Sullins Connector Solutions PBC12SGAN	0.1 in	2.54 mm	Board to Board Cable	3 A	Gold	125 °C	-65 ░C	Phosphor Bronze			All	2.54 µm	100 µin	12	1			0.14 in	3.56 mm	Through Hole Right Angle	Black	0.1 in	2.54 mm	Solder	Tin	Unshrouded	Male Pin	Breakaway Header	0.318 "	8.08 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Square	Push-Pull	10 çin	0.25 çm
Sullins Connector Solutions PBC12DAEN	0.52 "	13.21 mm	Board to Board Cable	3 A	Gold	125 °C	-65 ░C	Phosphor Bronze	21.59 mm	0.85 in	All	2.54 µm	100 µin	24	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Through Hole	Black	0.1 in	2.54 mm	Solder	Tin	Unshrouded	Male Pin	Breakaway Header	0.23 in		UL94 V-0	Polybutylene Terephthalate (PBT)	Square	Push-Pull	10 çin	0.25 çm	5.84 mm
Sullins Connector Solutions PBC12SFBN	0.22 in	5.58 mm	Board to Board Cable	3 A	Gold	125 °C	-65 ░C	Phosphor Bronze	16.21 mm	0.638 in	All	2.54 µm	100 µin	12	1			0.1 in	2.54 mm	Through Hole	Black	0.1 in	2.54 mm	Solder	Tin	Unshrouded	Male Pin	Breakaway Header	0.318 "	8.08 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Square	Push-Pull	10 çin	0.25 çm
Sullins Connector Solutions PBC12SAAN			Board to Board Cable	3 A	Gold	125 °C	-65 ░C	Phosphor Bronze	11.43 mm	0.45 "	All	2.54 µm	100 µin	12	1			0.1 in	2.54 mm	Through Hole	Black	0.1 in	2.54 mm	Solder	Tin	Unshrouded	Male Pin	Breakaway Header	0.23 in		UL94 V-0	Polybutylene Terephthalate (PBT)	Square	Push-Pull	10 çin	0.25 çm	5.84 mm	0.12 in	3.05 mm
Sullins Connector Solutions PBC12DBAN	0.1 in	2.54 mm	Board to Board Cable	3 A	Gold	125 °C	-65 ░C	Phosphor Bronze			All	2.54 µm	100 µin	24	2	2.54 mm	0.1 in	0.24 in	6.1 mm	Through Hole Right Angle	Black	0.1 in	2.54 mm	Solder	Tin	Unshrouded	Male Pin	Breakaway Header	0.23 in		UL94 V-0	Polybutylene Terephthalate (PBT)	Square	Push-Pull	10 çin	0.25 çm	5.84 mm
Sullins Connector Solutions PBC12DACN			Board to Board Cable	3 A	Gold	125 °C	-65 ░C	Phosphor Bronze	0.65 in		All	2.54 µm	100 µin	24	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Through Hole	Black	0.1 in	2.54 mm	Solder	Tin	Unshrouded	Male Pin	Breakaway Header	0.23 in		UL94 V-0	Polybutylene Terephthalate (PBT)	Square	Push-Pull	10 çin	0.25 çm	5.84 mm	0.32 in	8.13 mm	16.51 mm
Sullins Connector Solutions PBC12DBBN			Board to Board Cable	3 A	Gold	125 °C	-65 ░C	Phosphor Bronze			All	2.54 µm	100 µin	24	2	2.54 mm	0.1 in	0.24 in	6.1 mm	Through Hole Right Angle	Black	0.1 in	2.54 mm	Solder	Tin	Unshrouded	Male Pin	Breakaway Header	0.23 in		UL94 V-0	Polybutylene Terephthalate (PBT)	Square	Push-Pull	10 çin	0.25 çm	5.84 mm	0.2 in	5.08 mm
Sullins Connector Solutions PBC12DFCN			Board to Board Cable	3 A	Gold	125 °C	-65 ░C	Phosphor Bronze	18.75 mm	0.738 "	All	2.54 µm	100 µin	24	2	2.54 mm	0.1 in	0.1 in	2.54 mm	Through Hole	Black	0.1 in	2.54 mm	Solder	Tin	Unshrouded	Male Pin	Breakaway Header	0.318 "	8.08 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Square	Push-Pull	10 çin	0.25 çm		0.32 in	8.13 mm
Sullins Connector Solutions PBC12SFEN	0.52 "	13.21 mm	Board to Board Cable	3 A	Gold	125 °C	-65 ░C	Phosphor Bronze	23.83 mm	0.938 in	All	2.54 µm	100 µin	12	1			0.1 in	2.54 mm	Through Hole	Black	0.1 in	2.54 mm	Solder	Tin	Unshrouded	Male Pin	Breakaway Header	0.318 "	8.08 mm	UL94 V-0	Polybutylene Terephthalate (PBT)	Square	Push-Pull	10 çin	0.25 çm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.23
		10	$ 1.04
		100	$ 0.93
		500	$ 0.76
		1000	$ 0.68
		5000	$ 0.61

Description

General part information

PBC12 Series

Connector Header Through Hole 12 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
