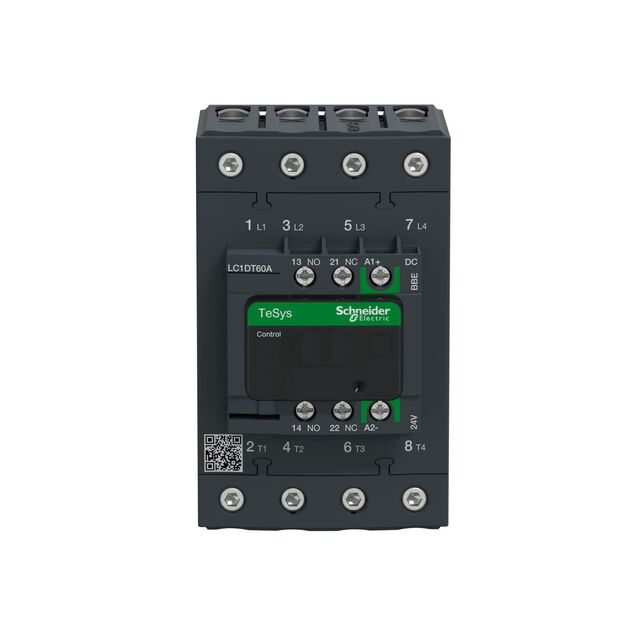

LC1DT60ABBE
ActiveSCHNEIDER ELECTRIC
TESYS CONT 4P 60A AC1 NO+NC 24V
LC1DT60ABBE
ActiveSCHNEIDER ELECTRIC
TESYS CONT 4P 60A AC1 NO+NC 24V
Description
General part information
LC1DT60ABBE
TESYS CONT 4P 60A AC1 NO+NC 24V
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1DT60ABBE |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | 4 Form A, PST-NO |
| Contact Rating (Current) | 60 A |
| Features | Diode, Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 19.2 V |
| Must Release Voltage | 2.4 V |
| Operate Time | 65 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 4 |
| Release Time | 80 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Screw Terminal |
