Description
General part information

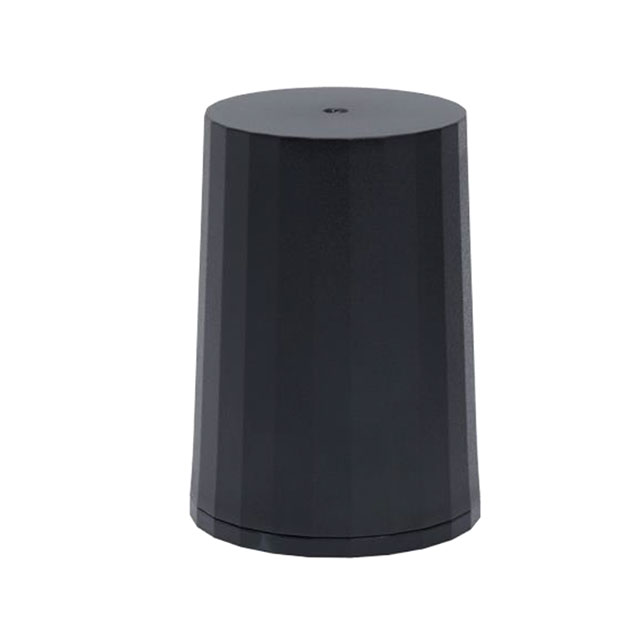

33-HC975-35
1.202GHz, 1.5655GHz Beidou, Galileo, GLONASS, GPS, LTE Helical RF Antenna 1.164GHz ~ 1.24GHz, 1.525GHz ~ 1.606GHz 35dB SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 33-HC975-35 |
|---|---|
| Antenna Type | Helical |
| Applications | LTE, Galileo, BEIDOU, GLONASS, GPS |
| Frequency (Band) | 1.5655 GHz |
| Frequency (Center) | 1.202 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Band 1) Maximum | 1.24 GHz |
| Frequency Range (Band 1) Minimum | 1.164 GHz |
| Frequency Range (Band 2) Maximum | 1.606 GHz |
| Frequency Range (Band 2) Minimum | 1.525 GHz |
| Gain | 35 dB |
| Height (Max) | 2.457 in |
| Ingress Protection | IP67 |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| RF Family/Standard | Navigation, Cellular |
| Termination Type | SMA Male |
| VSWR | 1.8 |
