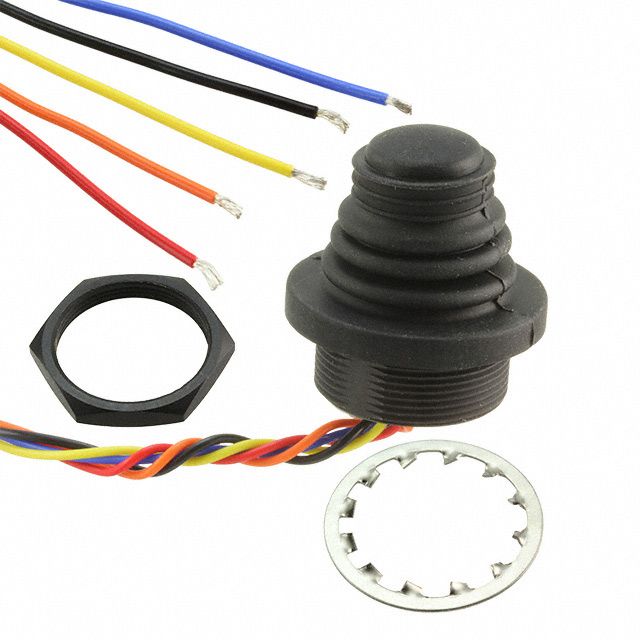

TS6T1S02A
Thumbstick, 2 - Axis Analog (Hall Effect) Output
Technical Specifications
Parameters and characteristics for this part
| Specification | TS6T1S02A |
|---|---|
| Actuator Type | Pushbutton |
| Axis Count | 2 Axis |
| Ingress Protection Description | Water Resistant, Dust Tight, Waterproof |
| Ingress Protection IP Rating | IP67, IP69K |
| Mechanical Life (Cycles) | 1000000 Cycles |
| Mounting Type | Panel Mount |
| Operating Force | 310 gf |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Analog (Hall Effect) |
| Panel Cutout Diameter | 25.02 mm |
| Panel Cutout Shape | Circular |
| Switch Function | 4-Way Directional, Center Select |
| Termination Style | Wire Leads |
| Type | 2 - Axis, Thumbstick |
| Voltage - Supply | 5 VDC |
