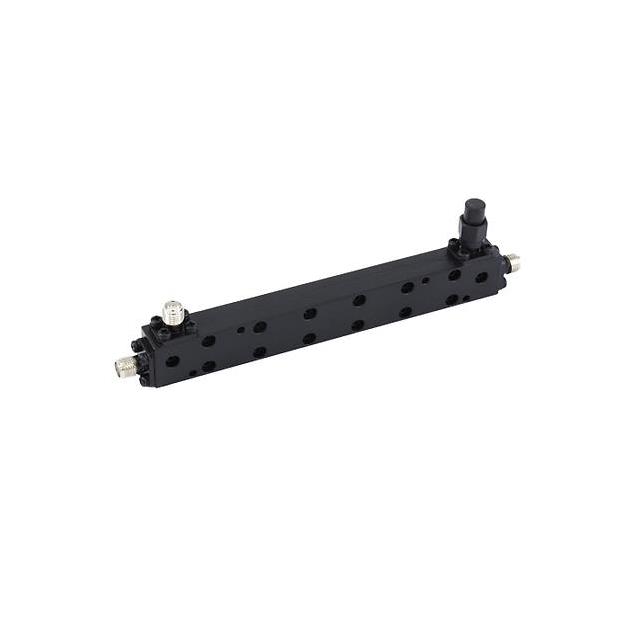

BC0560-10-SF
ActiveWITHWAVE CO LTD
DIRECTIONAL COUPLER 0.5 TO 6 GHZ
BC0560-10-SF
ActiveWITHWAVE CO LTD
DIRECTIONAL COUPLER 0.5 TO 6 GHZ
Description
General part information
BC0560-10-SF
RF Directional Coupler General Purpose 500MHz ~ 6GHz 10dB ± 1dB 50W Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | BC0560-10-SF |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Coupling Factor | 10 dB |
| Coupling Factor Tolerance | 1 dB |
| Frequency (Max) | 6 GHz |
| Frequency (Min) | 500 MHz |
| Insertion Loss | 1.2 dB |
| Package / Case | Module, SMA Connectors |
| Power - Max | 50 VA |
