629W17W2340-4NC
ActiveEDAC Inc.

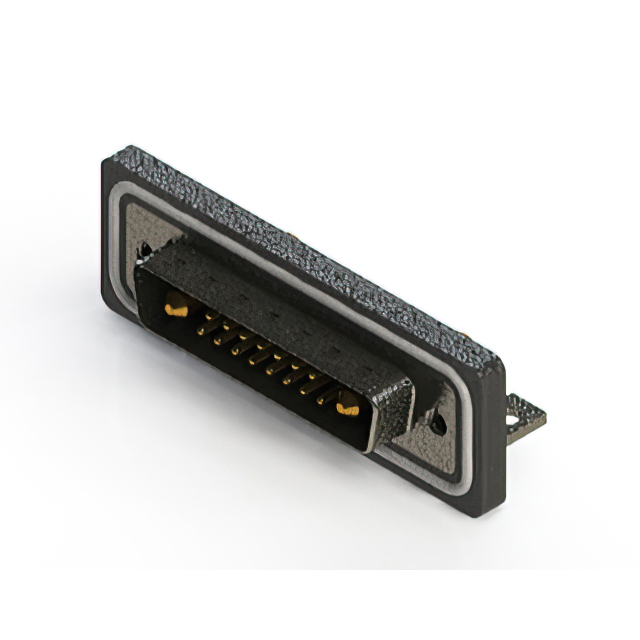

CONN D-SUB PLUG 17POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
629W17W2340-4NC
ActiveEDAC Inc.
CONN D-SUB PLUG 17POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 629W17W2340-4NC |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 40 A, 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents, Mounting Brackets, Shielded |
| Flange Feature | Housing/Shell (M3) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions [custom] | 15 |
| Number of Positions [custom] | 2 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 17W2, 3 (DB, B) |
| Termination | Solder |
| Voltage Rating | 125 VDC |
629W17W Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions [custom] | Number of Positions [custom] | Mounting Type | Dielectric Material | Ingress Protection | Connector Type | Flange Feature | Current Rating (Amps) | Contact Material | Shell Material, Finish | Voltage Rating | Material Flammability Rating | Color | Connector Style | Features | Number of Rows | Termination | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Contact Finish | Current Rating (Amps) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -55 °C | 125 °C | 15 | 2 | Through Hole Right Angle | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Male Pins Plug | Housing/Shell (M3) | 10A 5A | Copper Alloy | Nickel Plated Steel | 125 VDC | UL94 V-0 | Black | Combo D-Sub | Grounding Indents Mounting Brackets Shielded | 2 | Solder | Signal and Power | 0.76 Ám | 30 Áin | 17W2 3 (DB B) | Gold | ||
EDAC Inc. | -55 °C | 125 °C | 15 | 2 | Through Hole Right Angle | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Male Pins Plug | Housing/Shell (M3) | Copper Alloy | Nickel Plated Steel | 125 VDC | UL94 V-0 | Black | Combo D-Sub | Grounding Indents Mounting Brackets Shielded | 2 | Solder | Signal and Power | 0.76 Ám | 30 Áin | 17W2 3 (DB B) | Gold | 5 A 30 A | ||
EDAC Inc. | -55 °C | 125 °C | 15 | 2 | Panel Mount Right Angle Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Male Pins Plug | Housing/Shell (4-40) | 10A 5A | Copper Alloy | Nickel Plated Steel | 125 VDC | UL94 V-0 | Black | Combo D-Sub | Grounding Indents Mounting Brackets Shielded | 2 | Solder | Signal and Power | 0.76 Ám | 30 Áin | 17W2 3 (DB B) | Gold | ||
EDAC Inc. | -55 °C | 125 °C | 15 | 2 | Panel Mount Right Angle Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Male Pins Plug | Housing/Shell (4-40) | Copper Alloy | Nickel Plated Steel | 125 VDC | UL94 V-0 | Black | Combo D-Sub | Grounding Indents Shielded | 2 | Solder | Signal and Power | 0.76 Ám | 30 Áin | 17W2 3 (DB B) | Gold | 5 A 40 A | ||
EDAC Inc. | -55 °C | 125 °C | 15 | 2 | Panel Mount Right Angle Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Male Pins Plug | Housing/Shell (4-40) | Copper Alloy | Nickel Plated Steel | 125 VDC | UL94 V-0 | Black | Combo D-Sub | Grounding Indents Mounting Brackets Shielded | 2 | Solder | Signal and Power | 0.127 µm | 5 µin | 17W2 3 (DB B) | Gold | 5 A 30 A | ||
EDAC Inc. | -55 °C | 125 °C | 15 | 2 | Through Hole Right Angle | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Male Pins Plug | Housing/Shell (M3) | 10A 5A | Copper Alloy | Nickel Plated Steel | 125 VDC | UL94 V-0 | Black | Combo D-Sub | Grounding Indents Mounting Brackets Shielded | 2 | Solder | Signal and Power | 0.127 µm | 5 µin | 17W2 3 (DB B) | Gold | ||
EDAC Inc. | -55 °C | 125 °C | 15 | 2 | Through Hole Right Angle | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Male Pins Plug | Housing/Shell (M3) | Copper Alloy | Nickel Plated Steel | 125 VDC | UL94 V-0 | Black | Combo D-Sub | Grounding Indents Mounting Brackets Shielded | 2 | Solder | Signal and Power | 0.38 µm | 15 µin | 17W2 3 (DB B) | Gold | 5 A 40 A | ||
EDAC Inc. | -55 °C | 125 °C | 15 | 2 | Panel Mount Right Angle Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Male Pins Plug | Housing/Shell (4-40) | Copper Alloy | Nickel Plated Steel | 125 VDC | UL94 V-0 | Black | Combo D-Sub | Grounding Indents Mounting Brackets Shielded | 2 | Solder | Signal and Power | 0.38 µm | 15 µin | 17W2 3 (DB B) | Gold | 5 A 40 A | ||
EDAC Inc. | -55 °C | 125 °C | 15 | 2 | Panel Mount Right Angle Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Male Pins Plug | Housing/Shell (4-40) | Copper Alloy | Nickel Plated Steel | 125 VDC | UL94 V-0 | Black | Combo D-Sub | Grounding Indents Shielded | 2 | Solder | Signal and Power | 17W2 3 (DB B) | Gold | 5 A 40 A | Flash | |||
EDAC Inc. | -55 °C | 125 °C | 15 | 2 | Panel Mount Right Angle Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | IP67 - Dust Tight Waterproof | Male Pins Plug | Housing/Shell (4-40) | Copper Alloy | Nickel Plated Steel | 125 VDC | UL94 V-0 | Black | Combo D-Sub | Grounding Indents Mounting Brackets Shielded | 2 | Solder | Signal and Power | 17W2 3 (DB B) | Gold | 5 A 40 A | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 200 | $ 22.93 | |
Description
General part information
629W17W Series
17 (15 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
