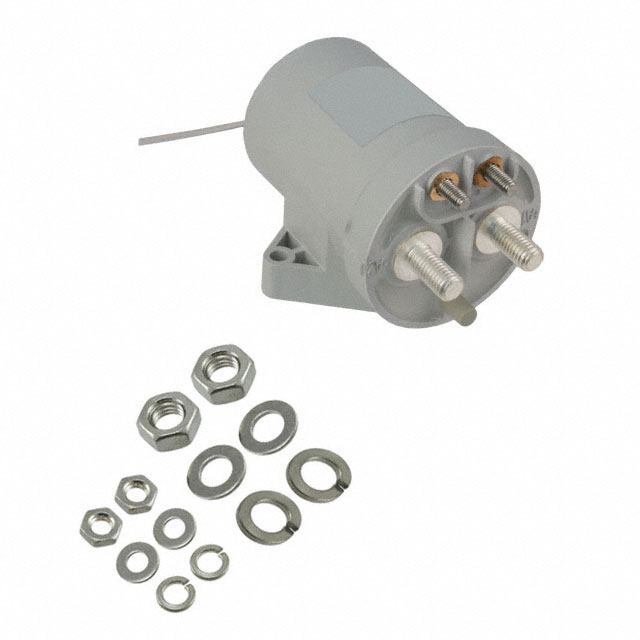

LEV200A4NAF
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY CONTACTOR SPST 500A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LEV200A4NAF
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY CONTACTOR SPST 500A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | LEV200A4NAF | LEV200 Series |
|---|---|---|
| - | - | |
| Coil Current | 1.1 A | 1.1 - 600 A |
| Coil Resistance | 11 Ohms | 11 - 40 Ohms |
| Coil Voltage | 12 VDC | 12 - 115 VDC |
| Contact Form | SPST-NO (DM) (1 Form X) | SPST-NO (DM) (1 Form X) |
| Contact Rating (Current) | 500 A | 500 A |
| Features | Sealed - Hermetically | Sealed - Hermetically |
| Mounting Type | Chassis Mount | Chassis Mount |
| Must Operate Voltage | 9 VDC | 9 - 19 VDC |
| Must Release Voltage | 2 VDC | 2 - 5 VDC |
| Operate Time | 25 ms | 25 ms |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Release Time | 12 ms | 12 ms |
| Switching Voltage | 900 VDC | 900 VDC |
| Termination Style | Stud | Wire Leads, Stud |
LEV200 Series
RELAY CONTACTOR SPST 500A 12V
| Part | Coil Current | Must Operate Voltage | Coil Resistance | Coil Voltage | Contact Rating (Current) | Contact Form | Operate Time | Must Release Voltage | Features | Termination Style | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine LEV200H4ANA | 1.1 A | 9 VDC | 11 Ohms | 12 VDC | 500 A | SPST-NO (DM) (1 Form X) | 25 ms | 2 VDC | Sealed - Hermetically | Stud, Wire Leads | Chassis Mount | 85 °C | -40 °C | 12 ms | 900 VDC |
TE Connectivity Aerospace, Defense and Marine LEV200A9ANA | |||||||||||||||
TE Connectivity Aerospace, Defense and Marine LEV200A4NAA | 1.1 A | 9 VDC | 11 Ohms | 12 VDC | 500 A | SPST-NO (DM) (1 Form X) | 25 ms | 2 VDC | Sealed - Hermetically | Stud | Chassis Mount | 85 °C | -40 °C | 12 ms | 900 VDC |
TE Connectivity Aerospace, Defense and Marine LEV200L5ANF | |||||||||||||||
TE Connectivity Aerospace, Defense and Marine LEV200HOANA01 | 115 VAC | 500 A | SPST-NO (DM) (1 Form X) | 25 ms | Sealed - Hermetically | Stud, Wire Leads | Chassis Mount | 85 °C | -40 °C | 12 ms | 900 VDC | ||||
TE Connectivity Aerospace, Defense and Marine LEV200H5ANA | 600 mA | 19 VDC | 40 Ohms | 24 VDC | 500 A | SPST-NO (DM) (1 Form X) | 25 ms | 5 VDC | Sealed - Hermetically | Stud, Wire Leads | Chassis Mount | 85 °C | -40 °C | 12 ms | 900 VDC |
TE Connectivity Aerospace, Defense and Marine LEV200A4ANF | 1.1 A | 9 VDC | 11 Ohms | 12 VDC | 500 A | SPST-NO (DM) (1 Form X) | 25 ms | 2 VDC | Sealed - Hermetically | Stud, Wire Leads | Chassis Mount | 85 °C | -40 °C | 12 ms | 900 VDC |
TE Connectivity Aerospace, Defense and Marine LEV200A5ANA | 600 mA | 19 VDC | 40 Ohms | 24 VDC | 500 A | SPST-NO (DM) (1 Form X) | 25 ms | 5 VDC | Sealed - Hermetically | Stud, Wire Leads | Chassis Mount | 85 °C | -40 °C | 12 ms | 900 VDC |
TE Connectivity Aerospace, Defense and Marine LEV200A4NAF | 1.1 A | 9 VDC | 11 Ohms | 12 VDC | 500 A | SPST-NO (DM) (1 Form X) | 25 ms | 2 VDC | Sealed - Hermetically | Stud | Chassis Mount | 85 °C | -40 °C | 12 ms | 900 VDC |
TE Connectivity Aerospace, Defense and Marine LEV200ABNAA | 600 mA | 19 VDC | 40 Ohms | 28 VDC | 500 A | SPST-NO (DM) (1 Form X) | 25 ms | 5 VDC | Sealed - Hermetically | Stud | Chassis Mount | 85 °C | -40 °C | 12 ms | 900 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 131.30 | |
| 10 | $ 123.58 | |||
Description
General part information
LEV200 Series
RELAY CONTACTOR SPST 500A 12V
Documents
Technical documentation and resources
