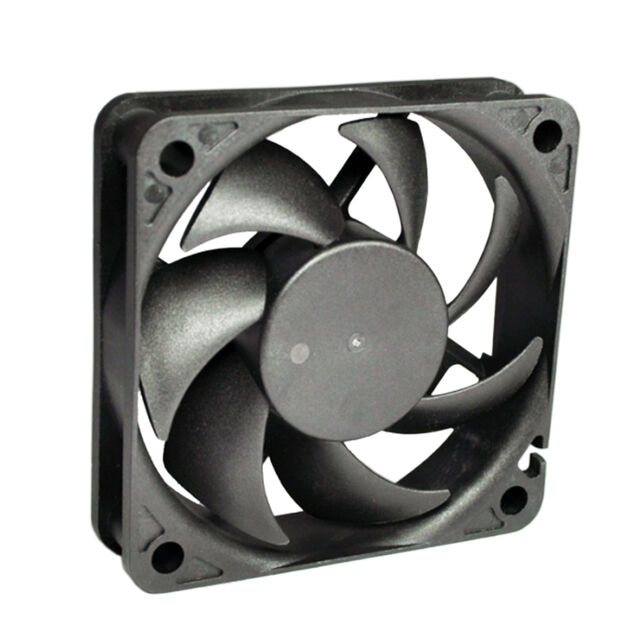

EYW06015012LL-12

Active

YS TECH USA

FAN AXIAL 60X15MM 12VDC WIRE

Search across all available documentation for this part.

Active

YS TECH USA

FAN AXIAL 60X15MM 12VDC WIRE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EYW06015012LL-12	EYW06015012 Series

Air Flow	-	20.9 - 27 CFM
Air Flow	-	0.585 - 0.756 m³/min
Bearing Type	-	Ball
Current Rating (Amps)	-	0.23 A
Fan Type	Tubeaxial	Tubeaxial
Lifetime @ Temp.	-	65000 - 75000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	-	33 - 38 dB(A)
Power (Watts)	-	1.56 - 2.76 W
RPM	-	4800 - 6100 RPM
Size / Dimension [x]	60 mm	60 mm
Size / Dimension [y]	60 mm	60 mm
Static Pressure	-	0.154 - 0.256 in H2O
Static Pressure	-	38.4 - 63.8 Pa
Termination	2 Wire Leads	2 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.2 VDC	13.2 VDC
Voltage Range [Min]	7 V	7 V
Width [x]	15 mm	15 mm

FAN AXIAL 60X15MM 12VDC WIRE

Part	Width [x]	Size / Dimension [x]	Size / Dimension [y]	Termination	Fan Type	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated	RPM	Air Flow	Air Flow	Lifetime @ Temp.	Bearing Type	Noise	Power (Watts)	Static Pressure	Static Pressure	Current Rating (Amps)
YS TECH USA EYW06015012LL-12	15 mm	60 mm	60 mm	2 Wire Leads	Tubeaxial	Polybutylene Terephthalate (PBT)	13.2 VDC	7 V	12 VDC
YS TECH USA EYW06015012BH-12	15 mm	60 mm	60 mm	2 Wire Leads	Tubeaxial	Polybutylene Terephthalate (PBT)	13.2 VDC	7 V	12 VDC	4800 RPM	20.9 CFM	0.585 m³/min	75000 Hrs	Ball	33 dB(A)	1.56 W	0.154 in H2O	38.4 Pa
YS TECH USA EYW06015012BSS-12	15 mm	60 mm	60 mm	2 Wire Leads	Tubeaxial	Polybutylene Terephthalate (PBT)	13.2 VDC	7 V	12 VDC	6100 RPM	27 CFM	0.756 mł/min	65000 Hrs	Ball	38 dB(A)	2.76 W	0.256 in H2O	63.8 Pa	0.23 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H 2 Wire Leads
